- color:Black
- Network:GPRS
- Housing:Iron IP30
- 4G Band:B1/2/3/4/5/7/8/29/28/38/40/41
- 3G Frequency:850/900/1900/2100MHz
- 2G frequency:850/900/1800/1900Mhz
- Protocol:TCP/IP UDP
- Size:91*58*22mm
- Weight:205g
- Products Status:Stock
- Style:External
- Type:Wireless
- Interface Type:RS232/RS485
- Transmission Rate:7.2Mbps
- Certification:CE ROHS FCC
- Place of Origin:CN;FUJ
- Brand Name:YIFAN/OEM
- Model Number:M260-L

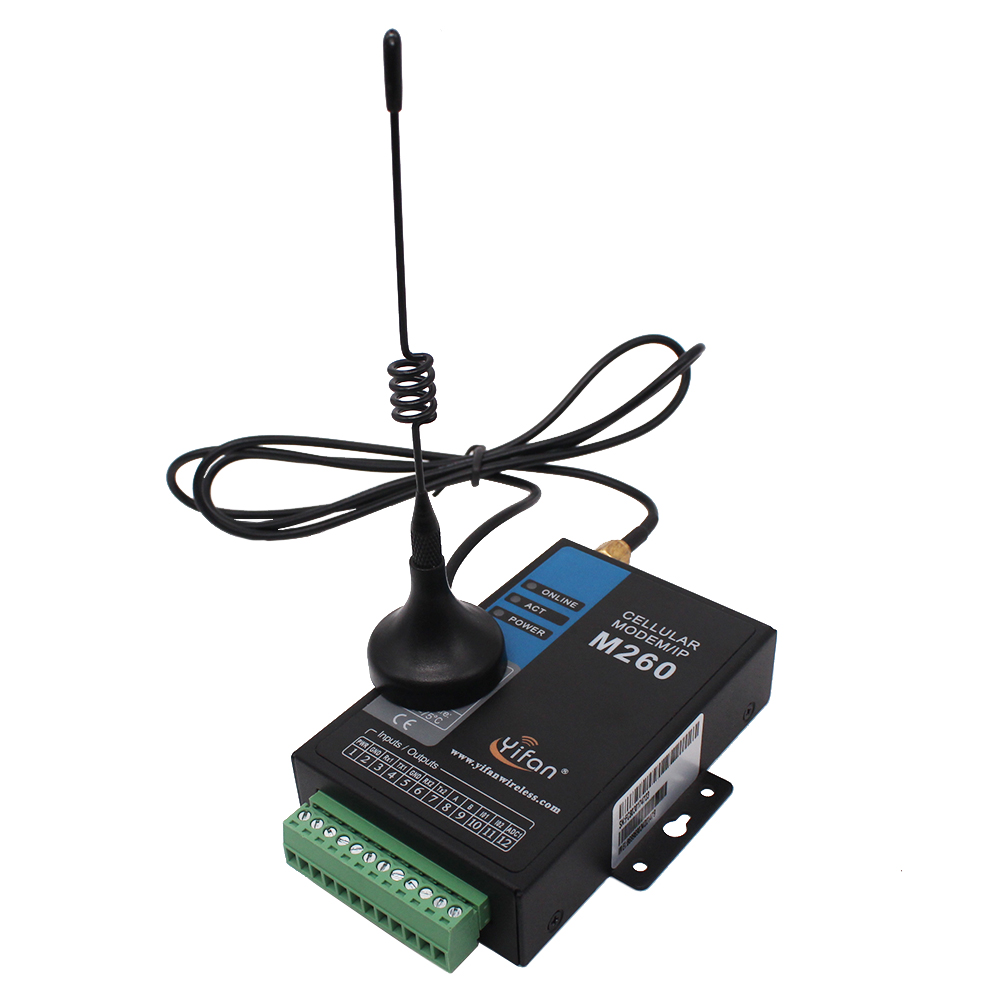

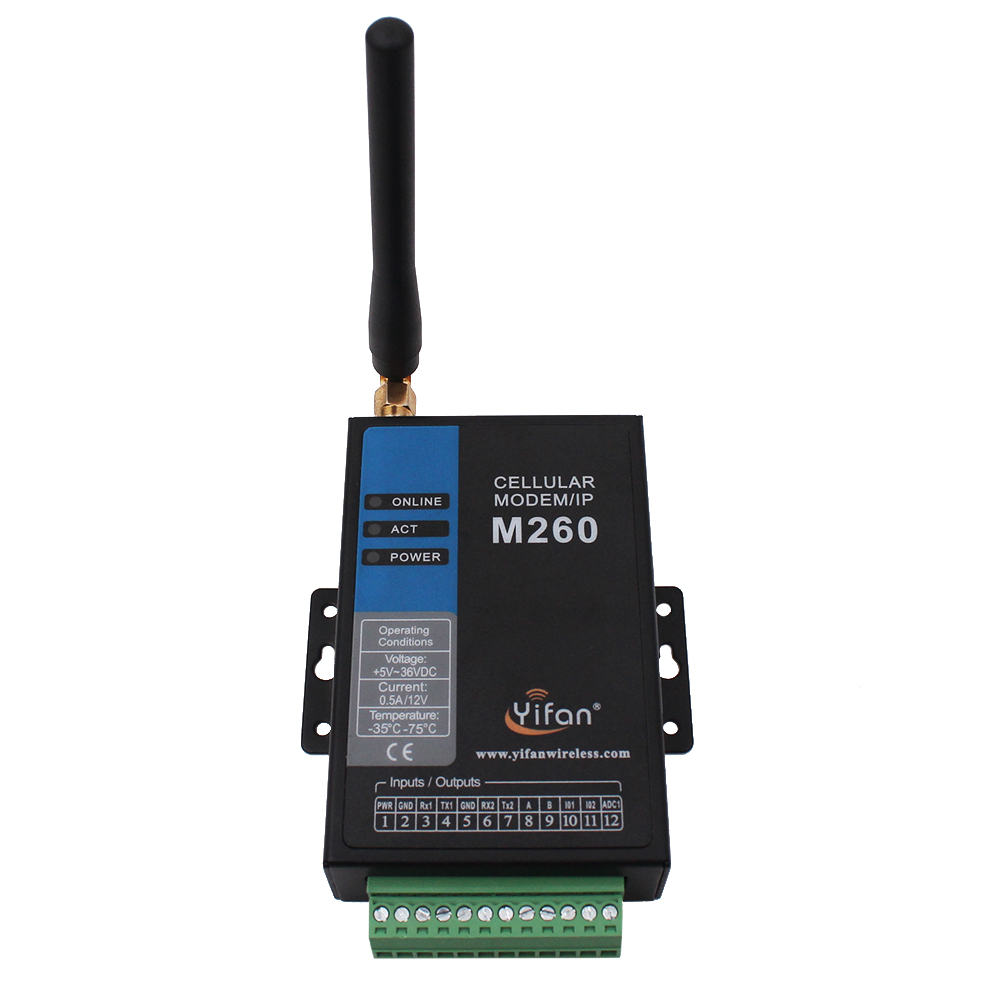

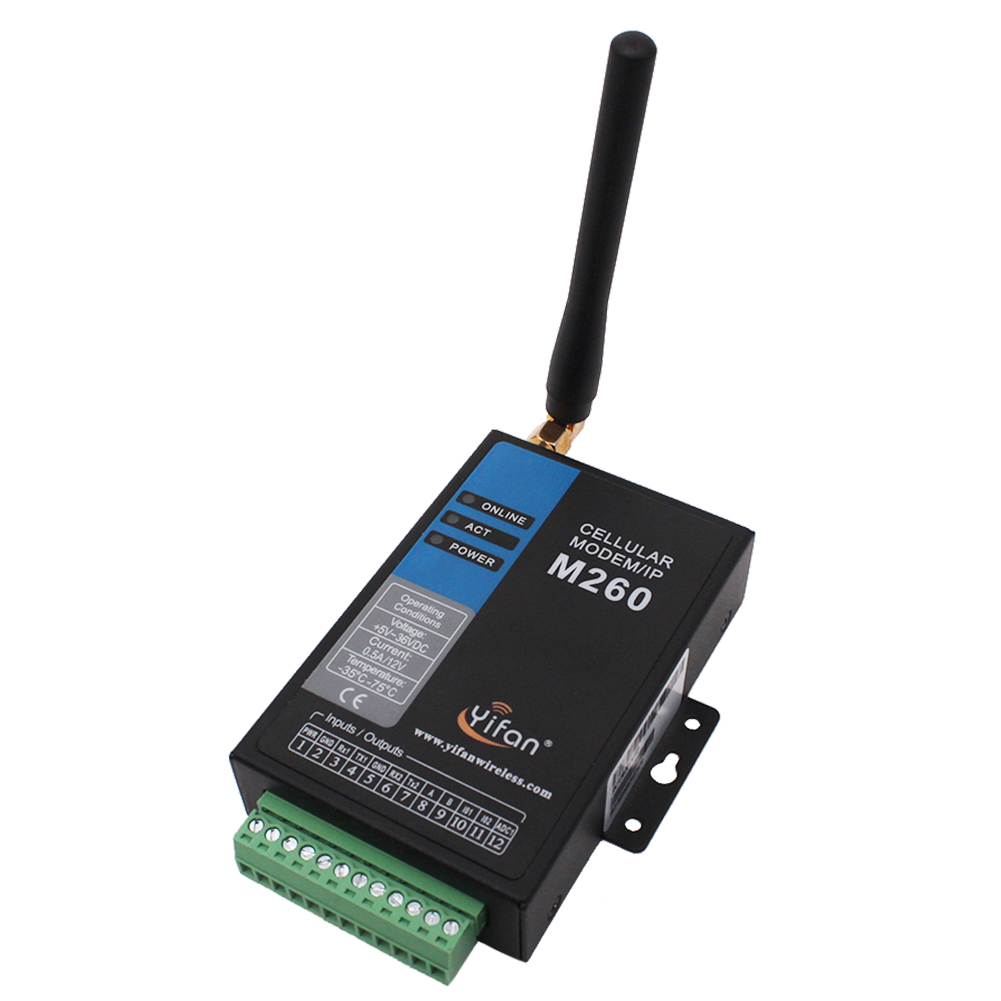

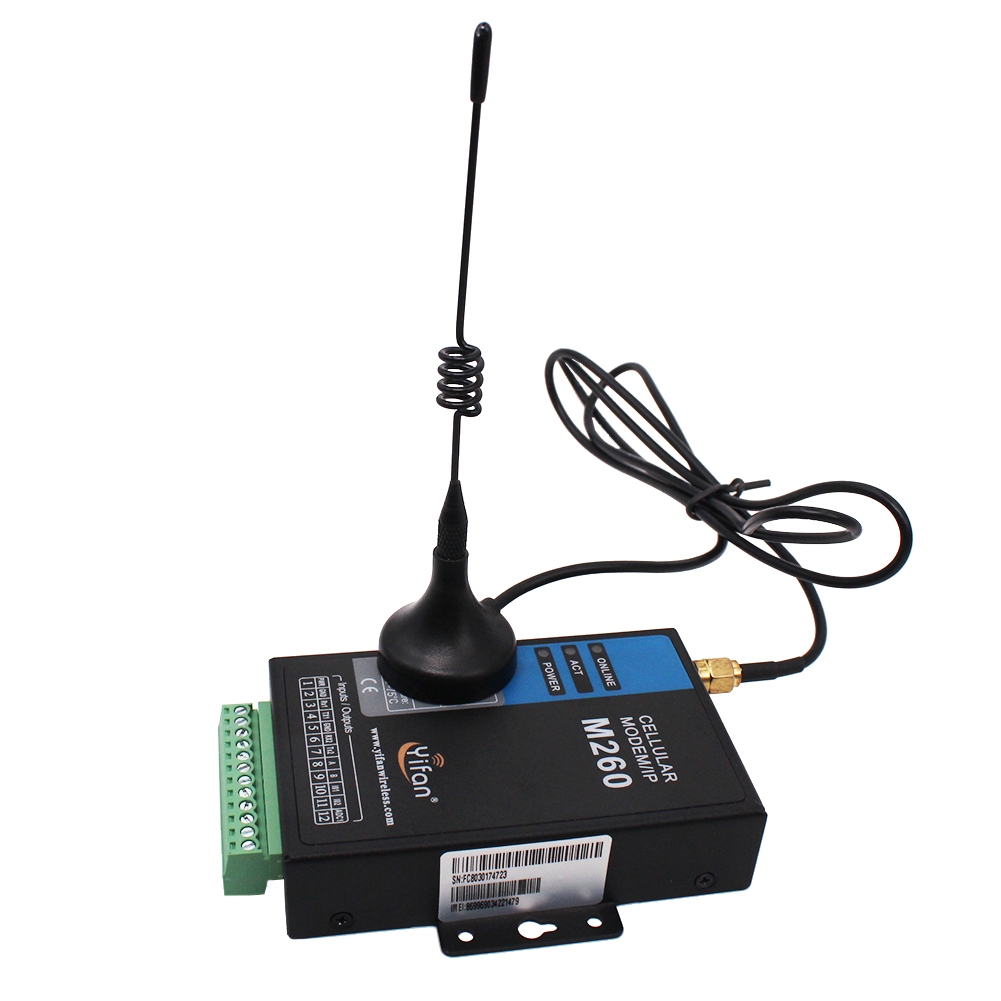

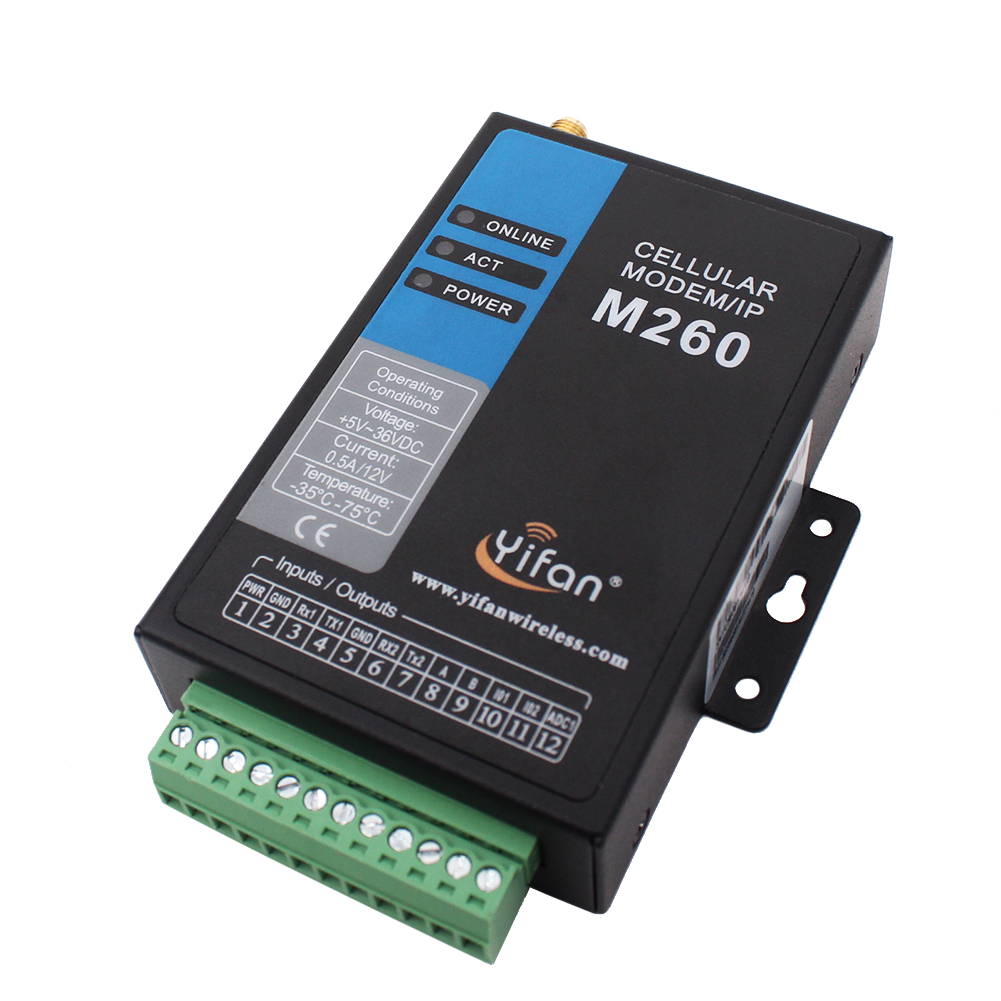

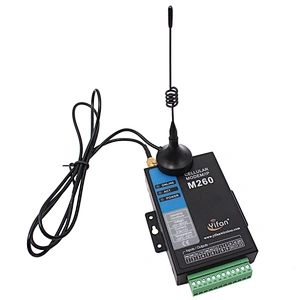

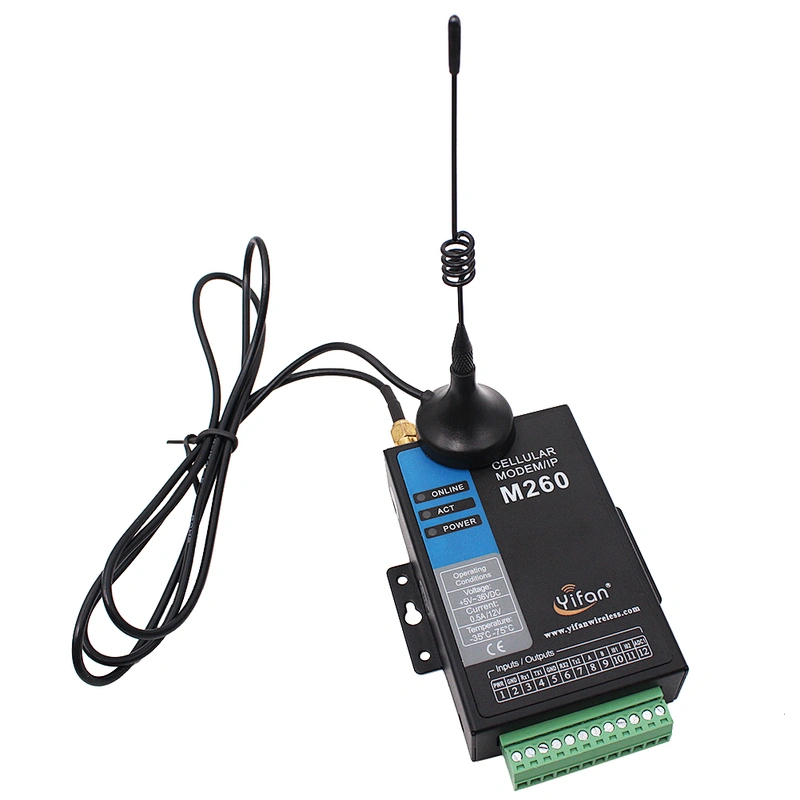

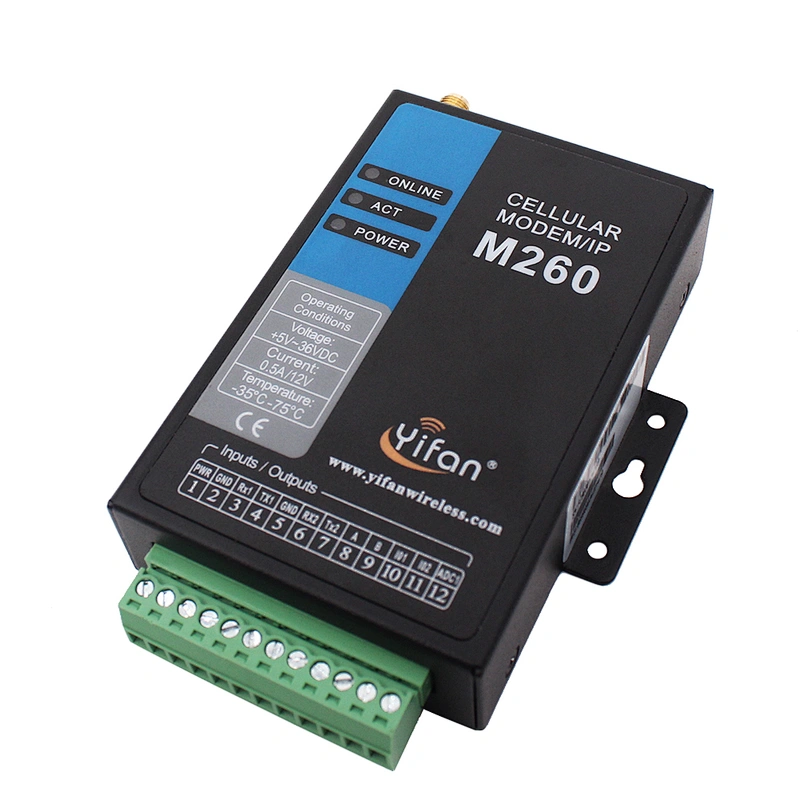

M260 Series Cellular IP MODEM is a kind of cellular terminal device that provides data transfer function by public cellular network.
It adopts high-powered industrial 32 bits CPU and embedded real time operating system. It supports RS232 and RS485 (or RS422) port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial devices with only basic configuration. It has low power consumption states in which the power consumption could be 1ower than 1mA@12VDC. It has compatible digital I/O channel, ADC, input pulse counter and pulse wave output function.

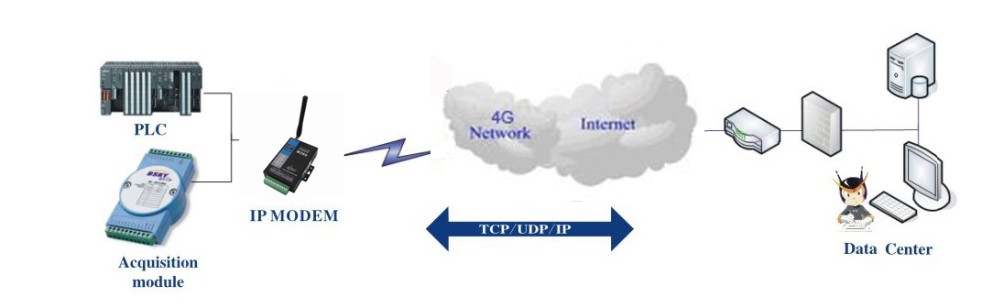

It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
High-performance:
Support double data centers, one main and another backup
Support multi data centers and it can support 5 data centers at the same time
Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
Support dynamic domain name(DDNS) and IP access to data center
Design with standard TCP/IP protocol stack Support APN/VPDN
Power port: reverse-voltage and overvoltage protection
Antenna port: lightning protection(optional)

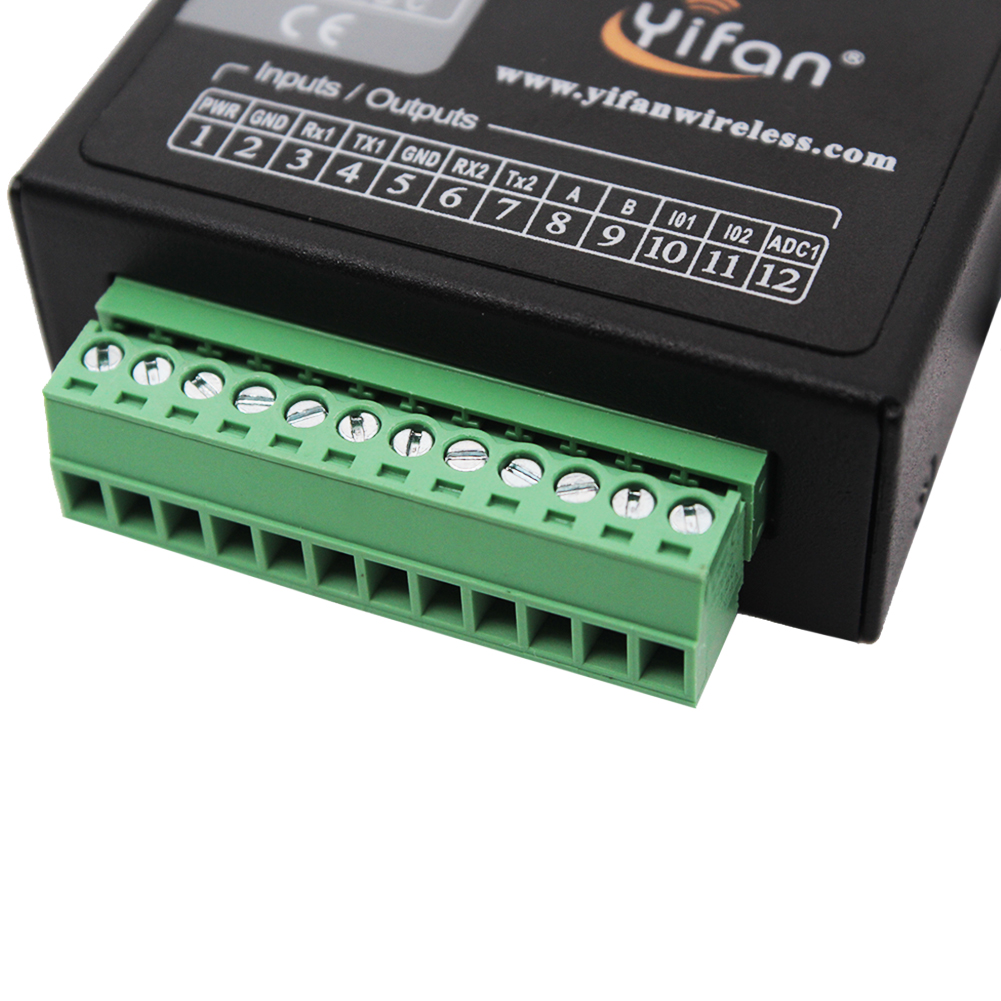

Adopt terminal block interface, convenient for industrial application
Support standard 2 standard RS232 ports and 1 RS485 that can connect to serial devices directly
TTL logic level RS232 interface can be customized
Serial:
2* RS232 port and 1 RS485(orRS422) port, 15KV ESD
protection Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark Baud rate: 110~230400 bps
Support intellectual mode, enter into communication state automatically when powered
Provide management software for remote management
Support several work modes
Convenient configuration and maintenance interface
TX power | <24dBm | |
RX sensitivity | <-107dBm | |
Standard and Band | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 (2100/1900/1800/1700/850/2600/900/800/700MHz) FDD: B2/B4/B5/B13/B17/B25/B26 (Optional), B1/B2/B3 /B5/B7/B8/B20/B28 (Optional) LTE TDD: B38/B39/B40/B41 HSPA+/HSUPA/HSDPA/WCDMA/UMTS 2100/1900/900/850MHz EDGE/GPRS/GSM 1900/1800/900/850MHz | |
CPU | Industrial 32 bits CPU | |
FLASH | 512KB (Extendable) | |
Bandwidth | LTE(DL:150Mbps,UL:50Mbps) HSPA+: 21Mbps(Download speed) 5.76Mbps(Upload speed) HSUPA:5.76Mbps(Upload speed) HSDPA:7.2Mbps(Download speed) UMTS:384Kbps (DL/UL) CDMA2000 1X EVDO: 3.1Mbps(DL)/1.8Mbps(UL) EDGE: 236.8Kbps(DL/UL) GPRS: 85.6Kbps | |

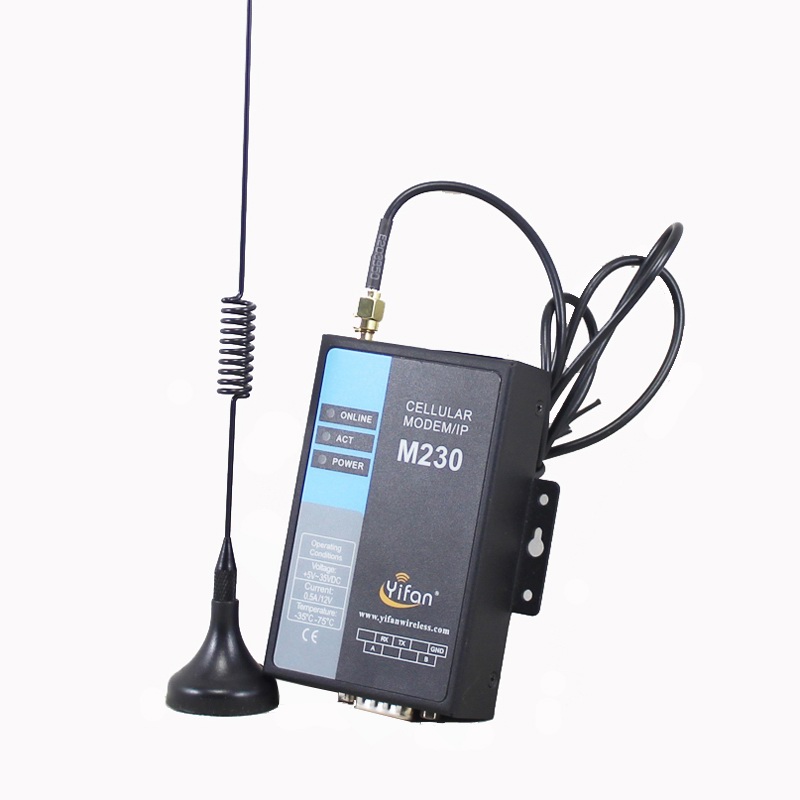

M230 GPRS/3G modem
91.8% Response Rate

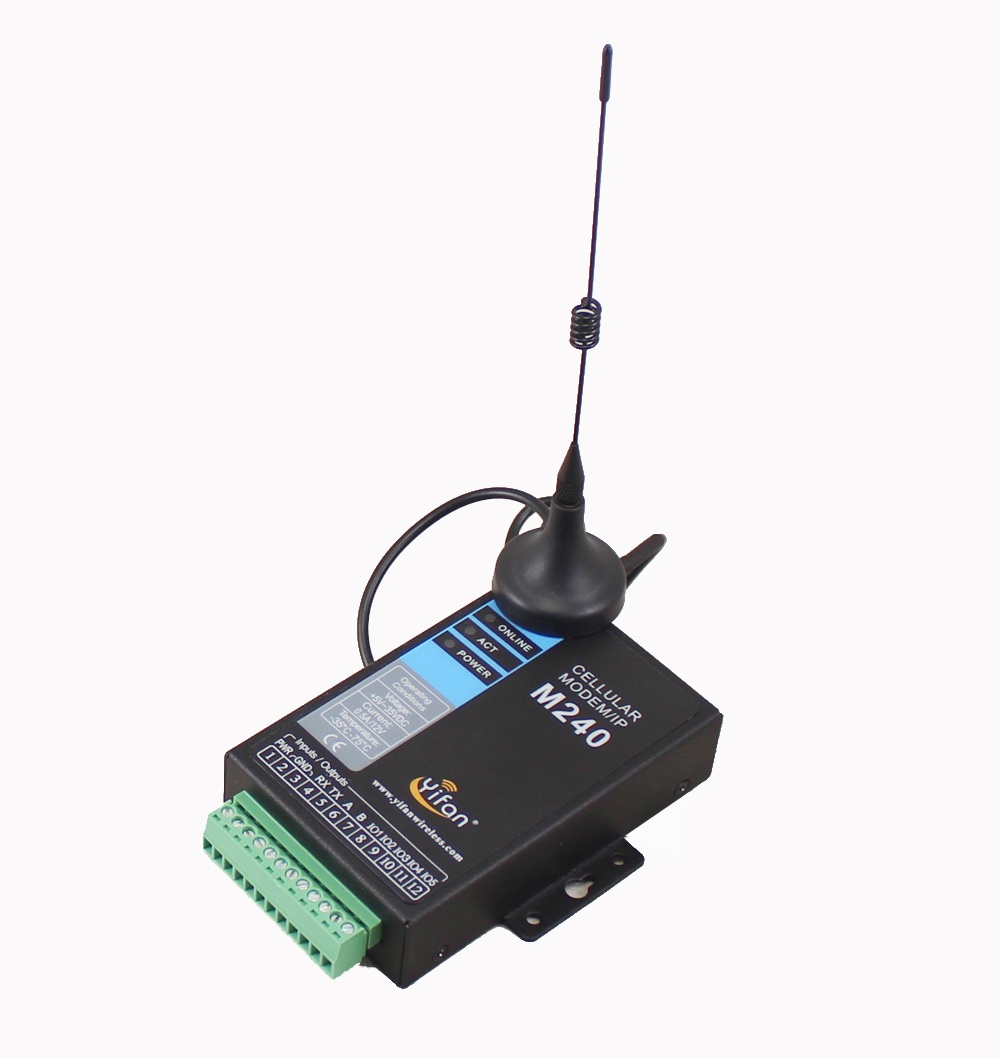

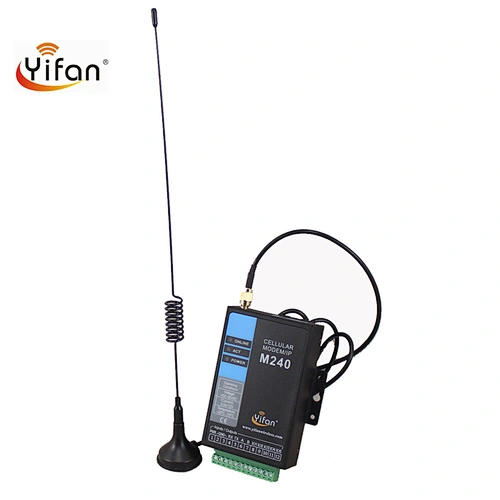

M240 cellular modem
91.8% Response Rate

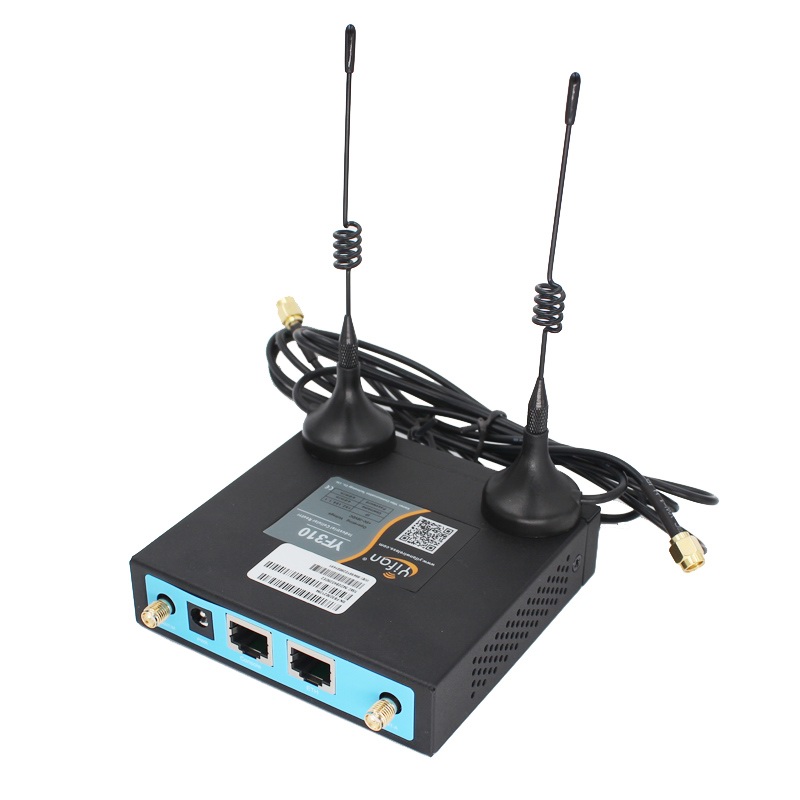

YF310 router without wifi
