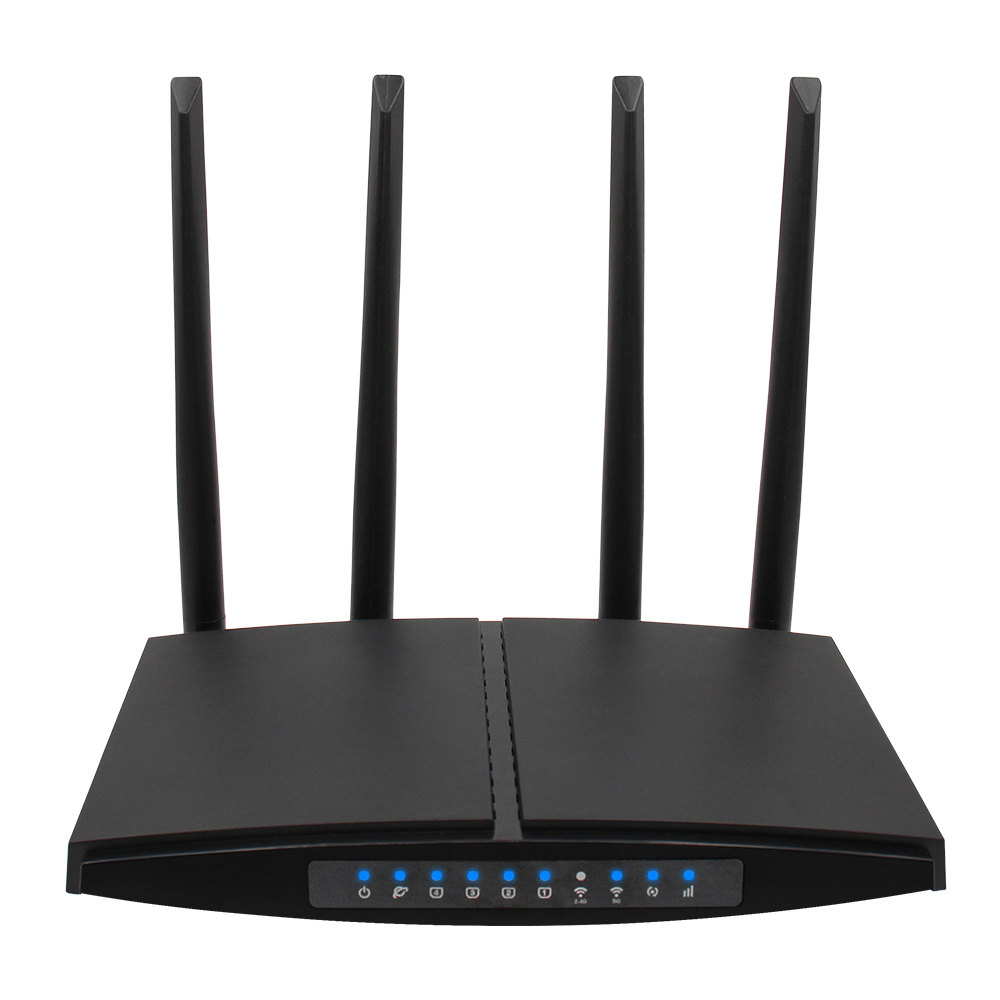

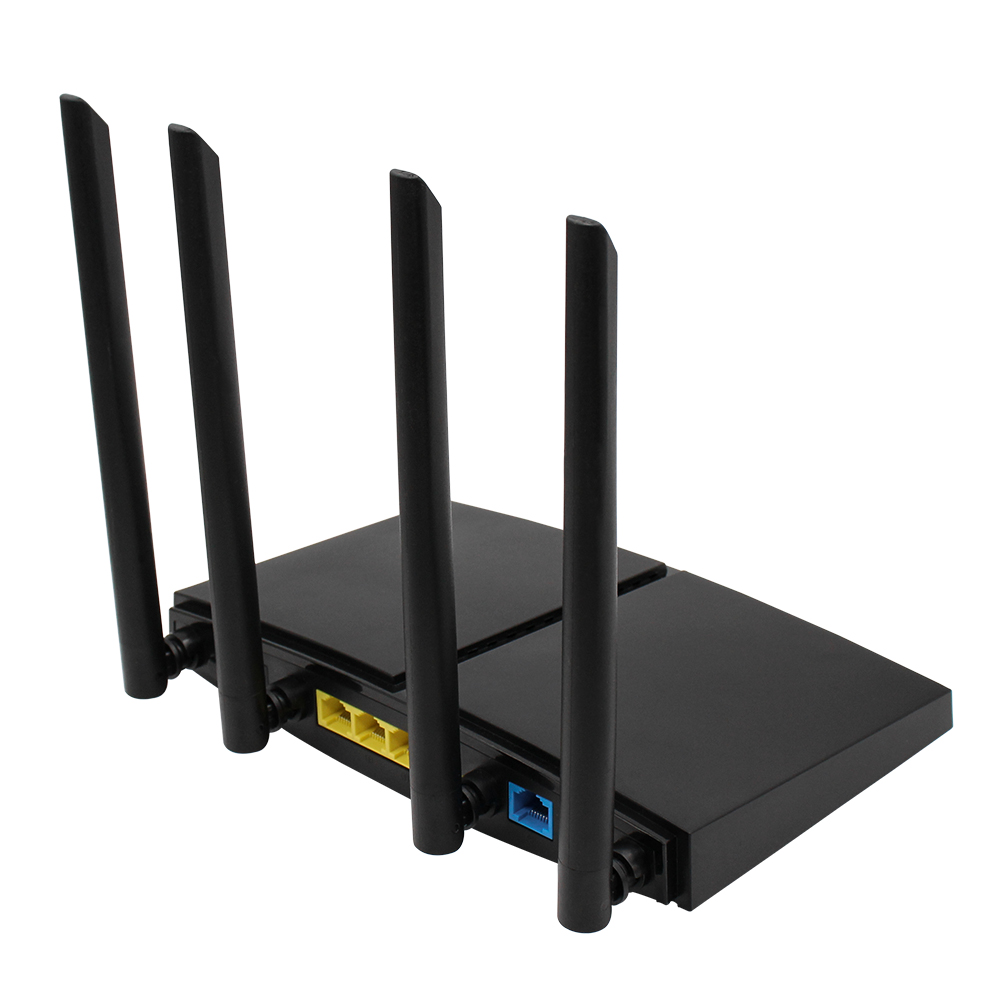

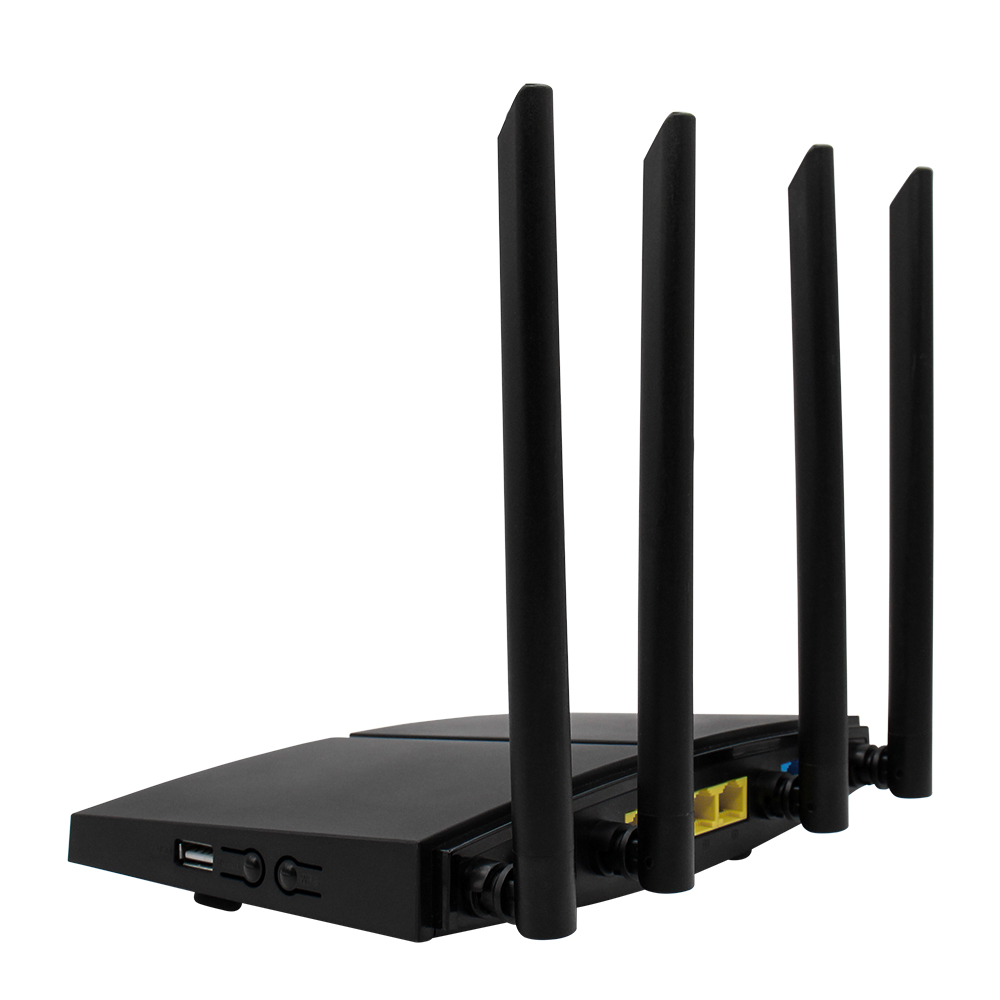

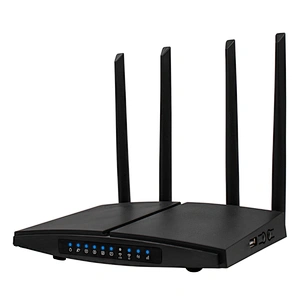

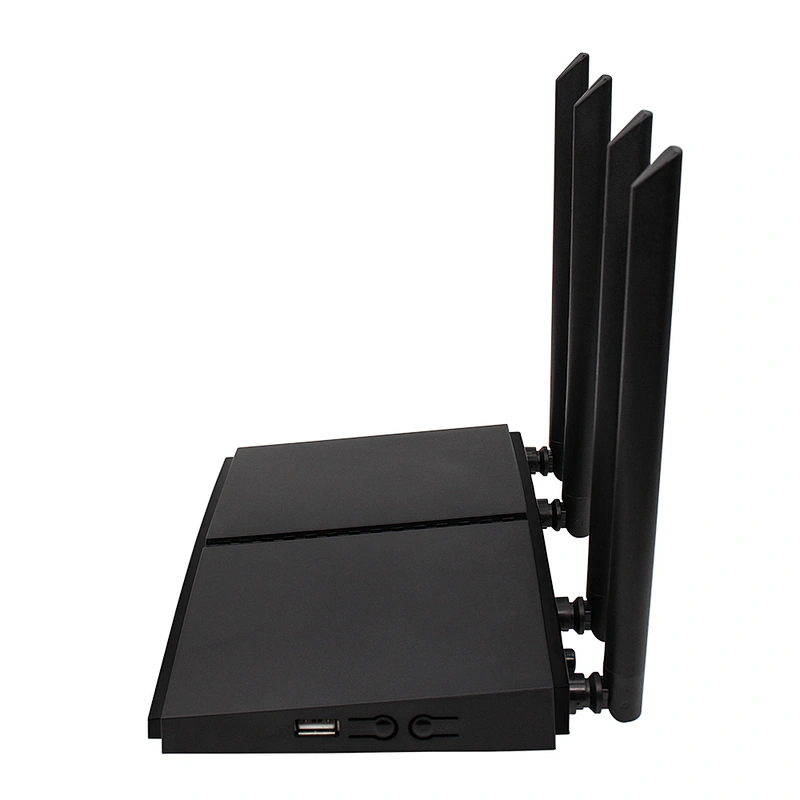

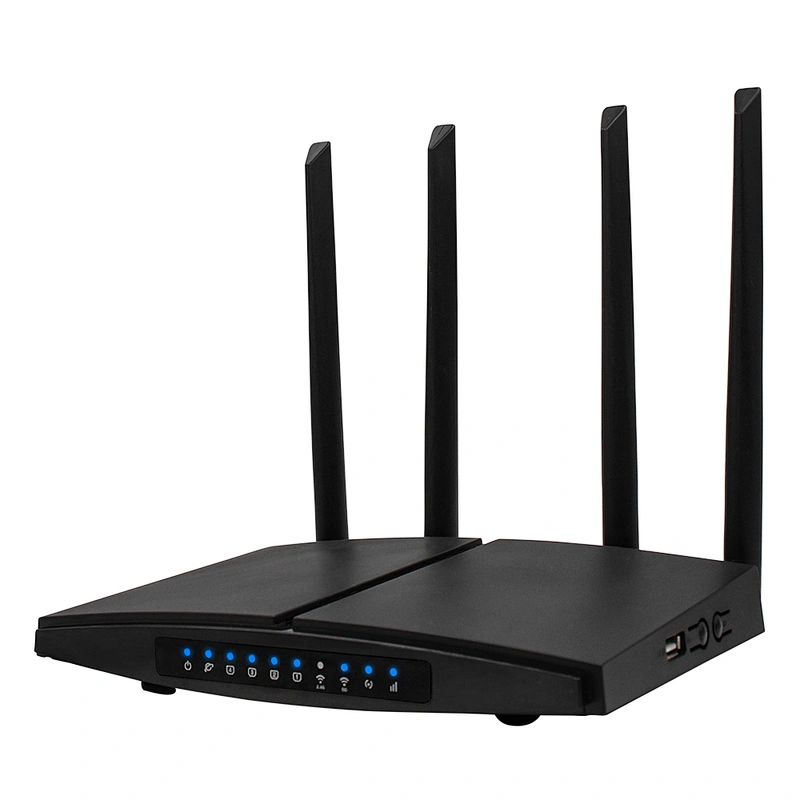

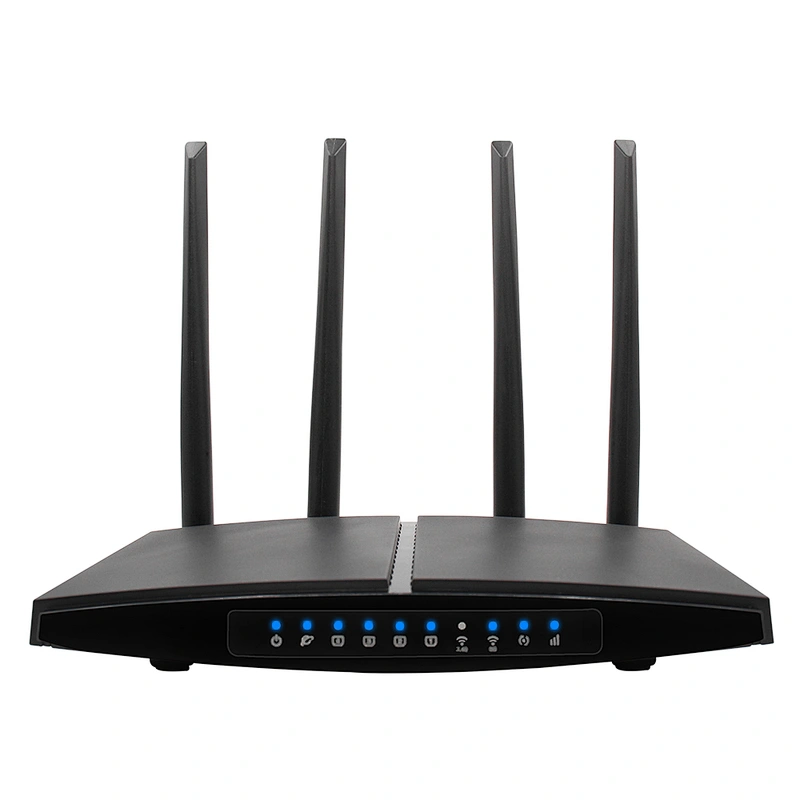

P22 LTE 4G Wireless 300Mbps Indoor CPE 802.11n 4-Port Fast Lan Mobile Router

P22 LTE 4G Wireless 300Mbps Indoor CPE 802.11n 4-Port Fast Lan Mobile Router

Model NO.: P22

Quantity:

Product Description

Details Images

Products Description

General

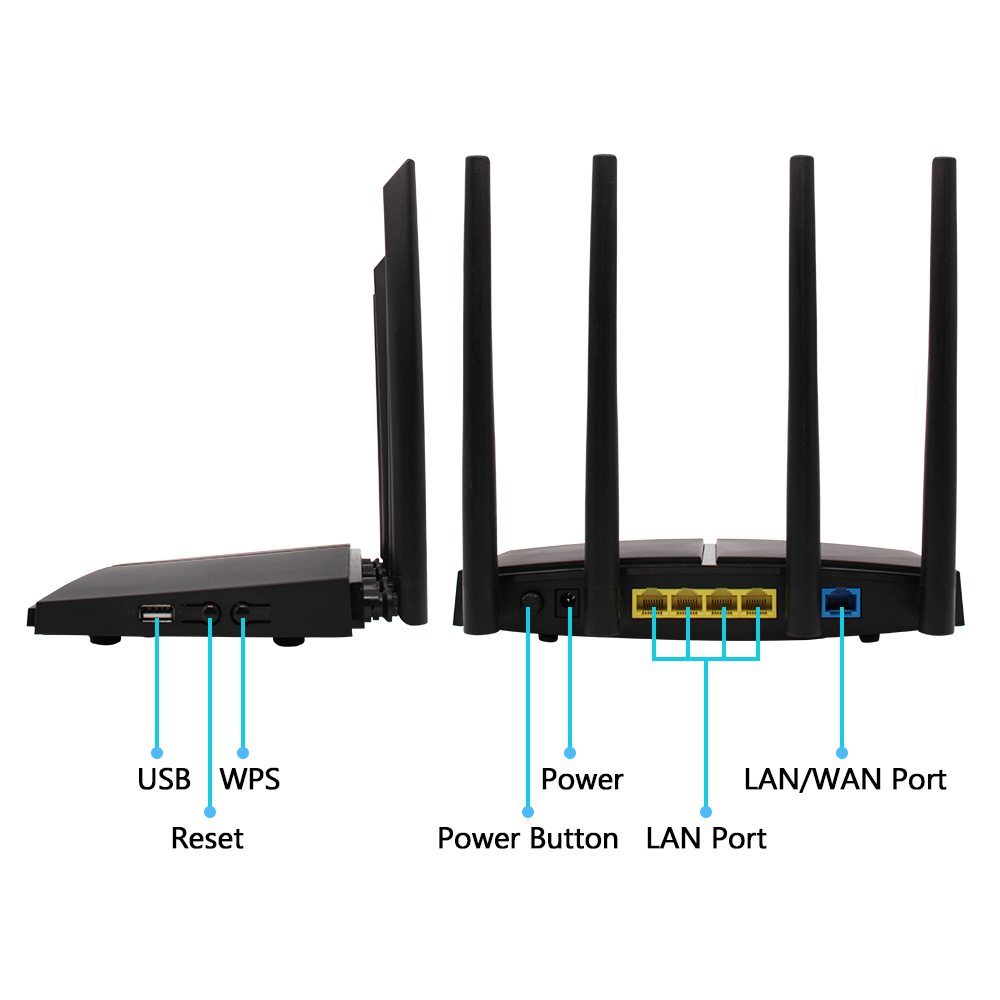

Device Interfaces	• Four10/100 Fast LANPorts	PowerButton
	• One10/100 Fast WANPort	USB2.0 Port
	•802.11b/g/nWirelessLAN 1	WPSButton

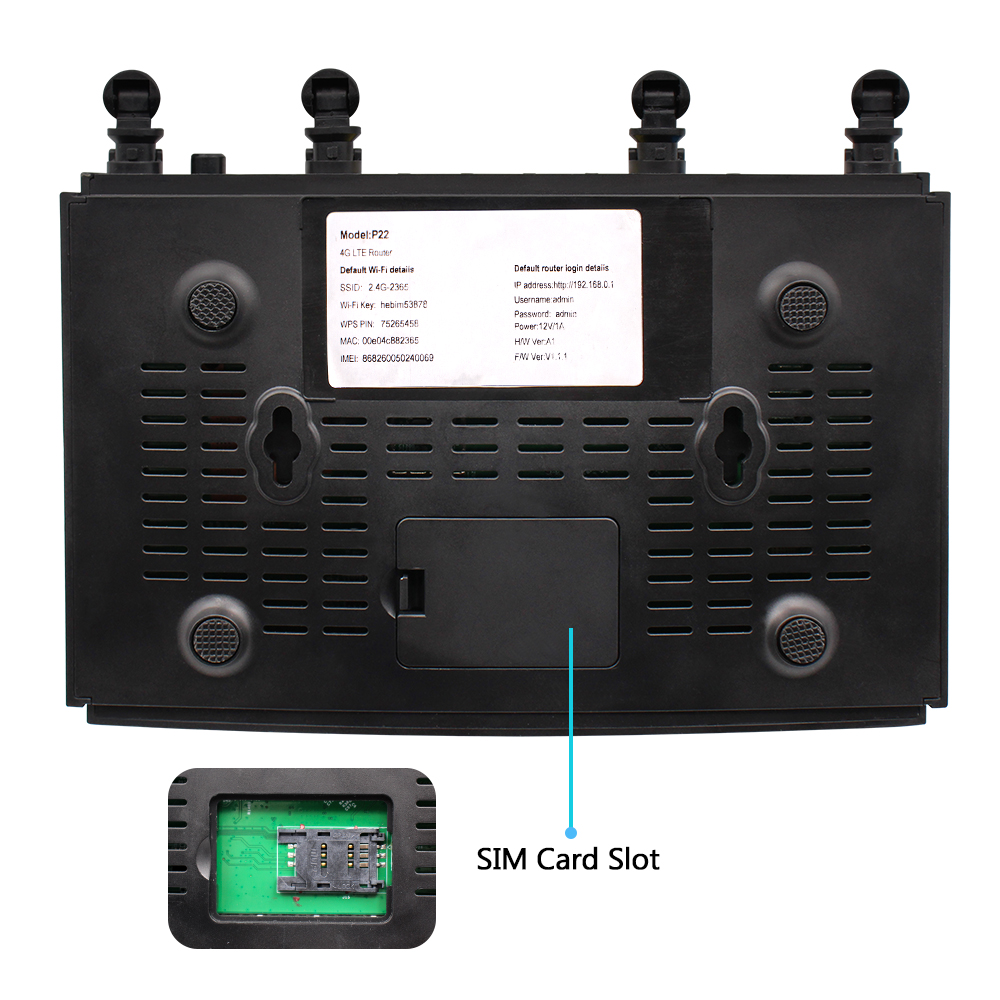

	• 2FF SIM card: standard 6 PIN SIM card interface	ResetButton
	• Cat 4 LTE(Qualcomm solution)
LTE Antenna	• Two 5 dBi external LTE Antennas.
WiFi Antenna	• Two 5 dBi external Wireless Antennas.
Data Signal Rate	• 2.4GHz • 300Mbps	• DL150Mbps UL 50Mbps
Standards	• IEEE802.11n	IEEE802.3
	• IEEE802.11g	IEEE802.3u
	• IEEE802.11b	IEEE802.3az
		IEEE802.3x
Network Protocols	• RFC2516PPPoverEthernet(PPPoE) • RFC1662PPPinHDLC-likeFraming • RFC1332PPPInternetProtocolControlProtocol •SupportALG(ApplicationLevelGateways) • DHCP CLIENT
LTE BAND	• Qualcomm: LTE B1/3/5/7/8/20/38/40/41 LTE: B2/B4/B5/B12/B13/B14/B66/B71(Optional)

Functionality
Security	• WPA&WPA2(Wi-FiProtectedAccess)	• Wi-FiProtectedSetup(WPS)-PIN/PBC
Advanced Features	• Multi-languageWebSetupWizard	• DualActiveFirewall
	• UPnPsupport	• VPNpass-through/multi-sessionPPTP/L2TP/IPSec
	• 802.1pQoS	• L2TP Client、PPTP Client and Gre VPN, L2TPV3 VPN
Routing Features	•RFC768UserDatagramProtocol(UDP)	• Supportsourceanddestinationrouting
	• RFC791InternetProtocol(IP)	• SupportDHCPserver/client
	•RFC792InternetControlMessageProtocol(ICMP)	•SupportUPnP
	•RFC793TransmissionControlProtocol(TCP)	•SupportNAT,NAPT
	•RFC826AnEthernetAddressResolutionProtocol(ARP)	• SupportDMZ
	• RFC862EchoProtocol	•SupportIPQoS
	• SupportIP routing	•SupportIGMPproxy
	• Supporttransparentbridging	• SupportIPv6
Management Features	•DeviceConfiguration,ManagementandUpdate	•WANManagementProtocol(TR-069)
	• Web basedGUI	• PSIconfigurationfileuploadanddownload
	•CommandLineInterfaceviaserialport,telnet,or SSH	•Date/timeupdatefromSNTPInternetTimeServer
	•UniversalPlugandPlay(UPnP)InternetGatewayDevice
	(IGDv1.0)

Physical
Dimensions	• 210x 150x 37 mm (8.26x 5.91 x 1.46inches)
Weight	• 475.7grams (1.05pounds)
Power	• Input:100 ~ 240V • Output: 12 V / 1A
Temperature	• Operating:0to45°C(32to113°F) • Storage: -20 to 70 °C (-4 to 158 °F)
Humidity	• 10 % to 95 % non-condensing

Certifications

Our Company

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. How about your delivery time?
A: Generally, it will take 3-7 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
