- Products Status:Stock
- Color:White
- DDNS:Support
- 4G Speed:CAT 150Mhz
- SMS:support
- Interface:RJ45
- Firewall:Support
- Chipset model:ATHEROS 9341
- Waterproof and Dustproof:IP66
- Max. LAN Data Rate:150Mbps
- With Modem Function:No
- Standards And Protocols:Wi-Fi 802.11g
- Standards And Protocols:Wi-Fi 802.11b
- Standards And Protocols:Wi-Fi 802.11n
- Wi-Fi Supported Frequency:2.4G
- Wi-Fi Transmission Standard:802.11n
- Wired Transfer Rate:10/100Mbps
- 2.4G Wi-Fi Transmission Rate:300 Mbps
- Encryption Type:WPA2-PSK
- Encryption Type:WPA-PSK
- Encryption Type:WPA
- Products Status:New
- Type:Wireless
- Application:ENTERPRISE
- Function:FireWall
- Function:QoS
- Function:VPN
- LAN Ports:1
- WAN Ports:1
- Place of Origin:CN;FUJ
- Certification:CE FCC ROHS
- Brand Name:Yifan/OEM

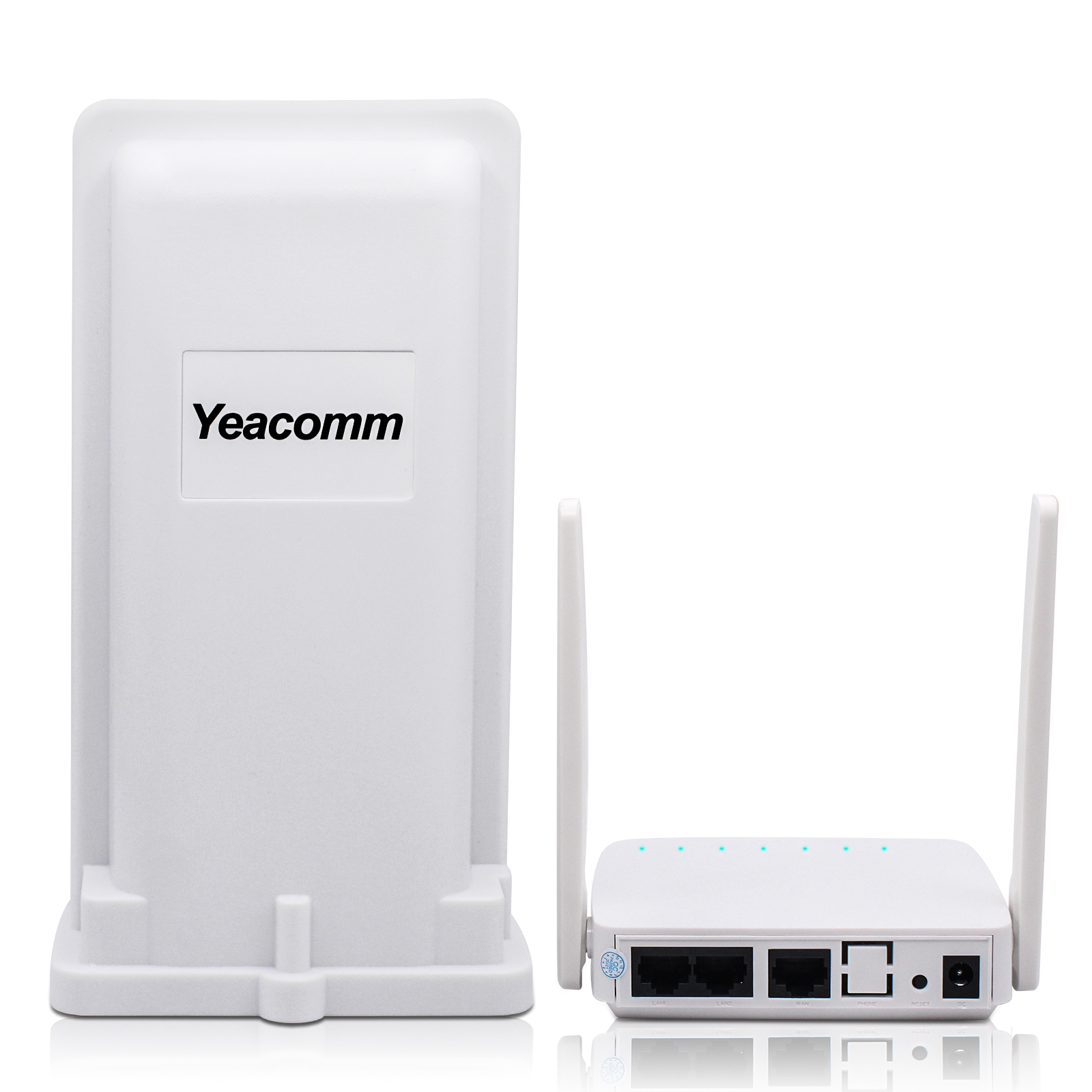

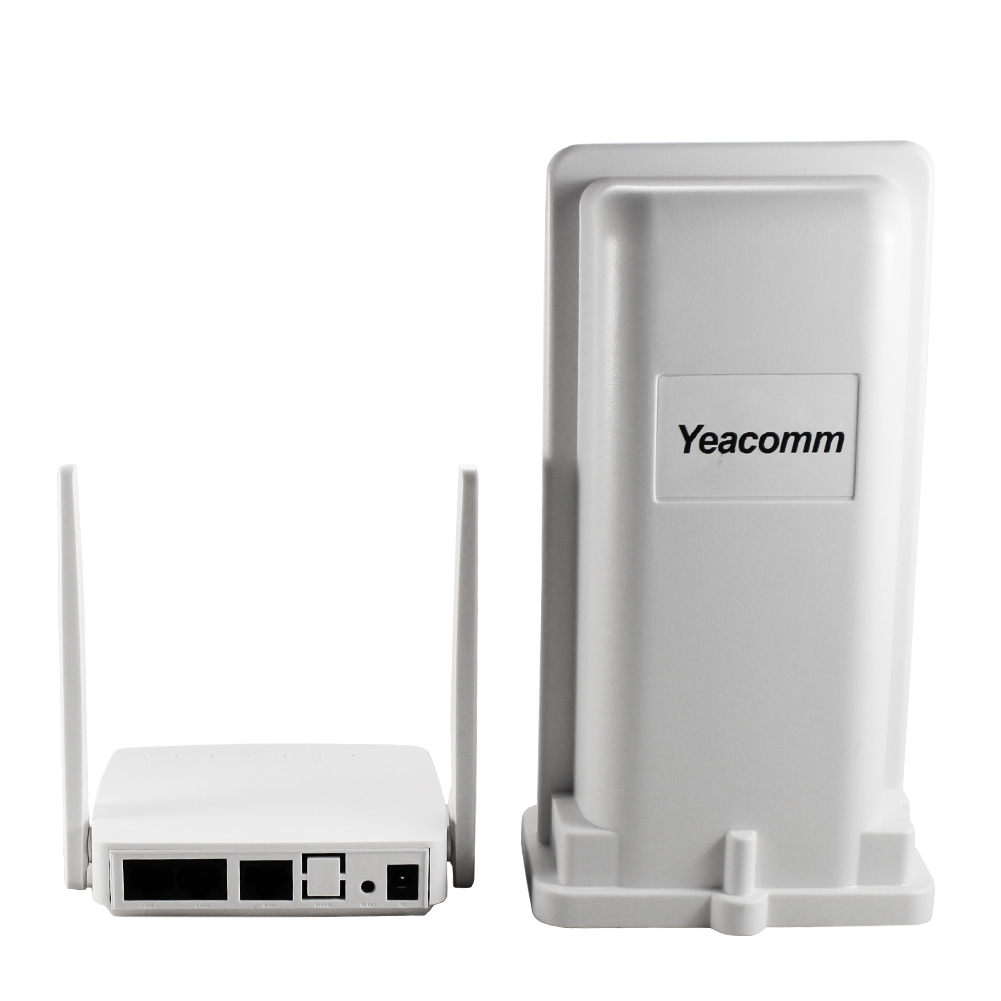

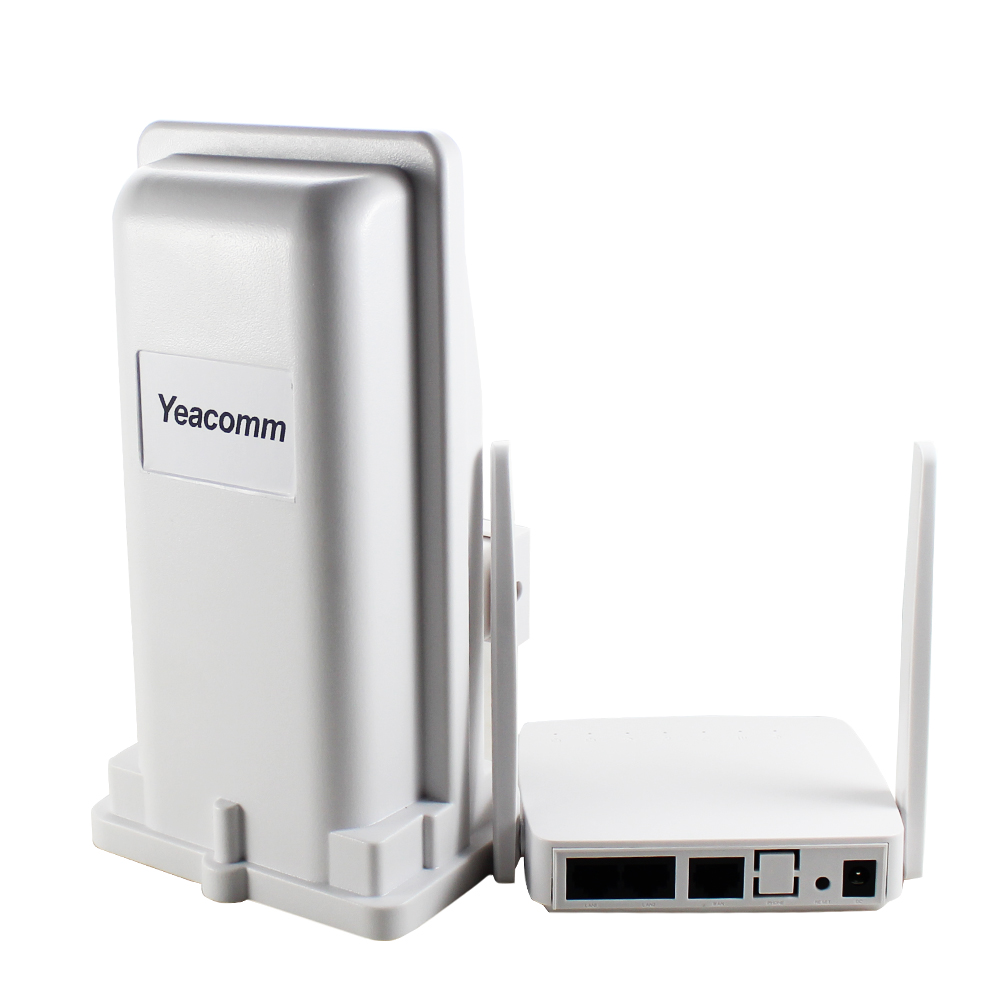

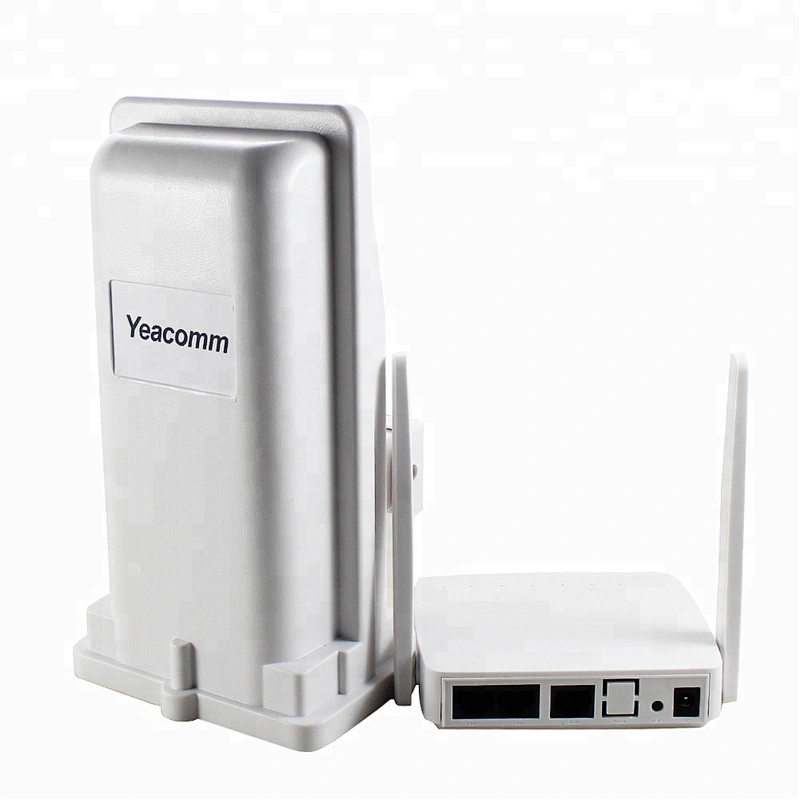

4G CPE WIFI KIT

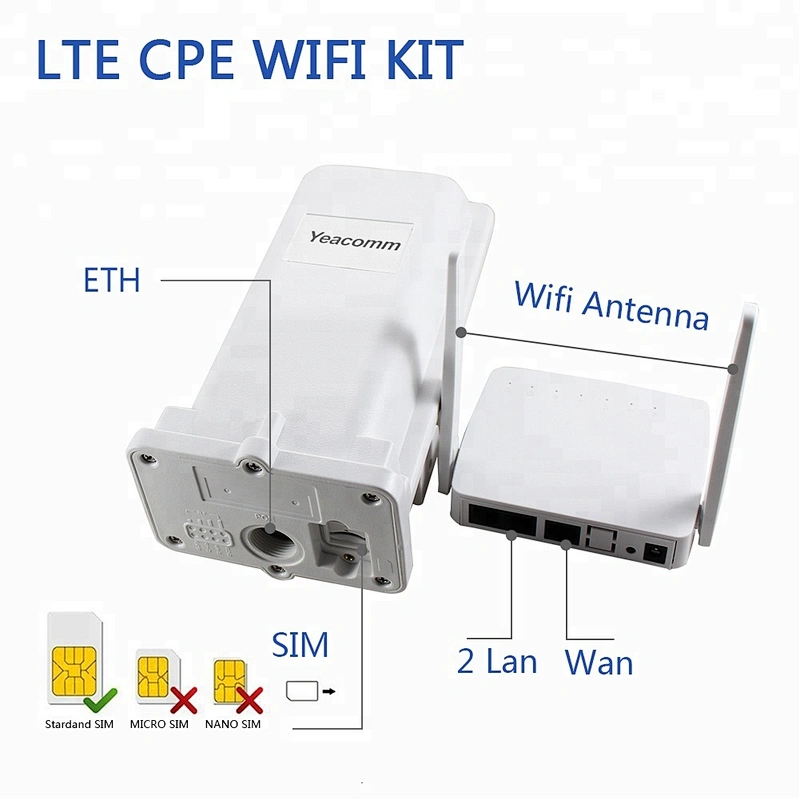

Yeacomm 4G WIFI KIT is divided into two parts (an outdoor LTE unit with sim card slot and an indoor unit with WIFI function.)

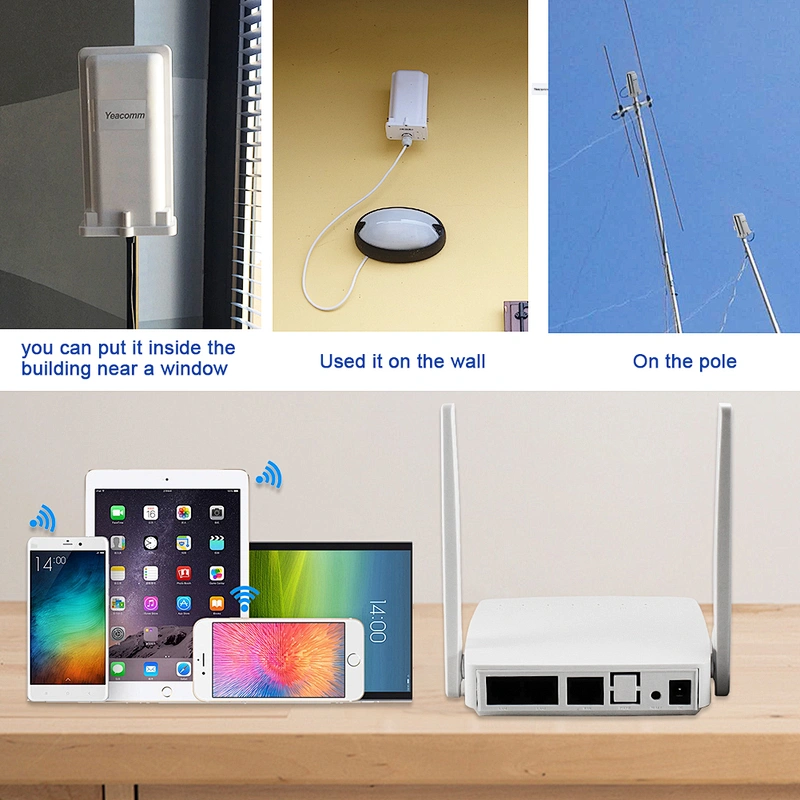

The outdoor unit designed with built-in high gain antenna to achieve LTE signal amplification. The water-proof and lightning-proof casing helps the unit to be good used at outdoors.
The indoor unit is placed in the room. It is just like a normal wireless router with 2 Lan ports and WIFI.
These 2 parts connected By Category 5 cable. The indoor unit supply power to the outdoor unit through POE, while the indoor unit provides two Ethernet ports and WIFI signal.
Frequency | FDD: B1/B2/B3/B5/B7/B8/B20, B2/B3/B4/B5/B12/B17/B25/B26(Optional) B1/B2/B3/B5/B7/B8/B28 (Optional) TDD Band 38/39/40/41, B42/B43(optional) WCDMA: 900/2100Mhz, 850/900/1900/2100Mhz(Optional) GSM: 850/900/1800/1900Mhz Frequency can be customized according to your requirements |
Speed(CAT)Max | FDD - LTE Downlink:150Mbps, Uplink:50Mbps TDD-LTE: Downlink:150Mbps, Uplink:50Mbps HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed) HSUPA: 5.76Mbps (upload speed)/ HSDPA: 7.2Mbps(download speed:) UMTS:384Kbps (download speed/upload speed) |

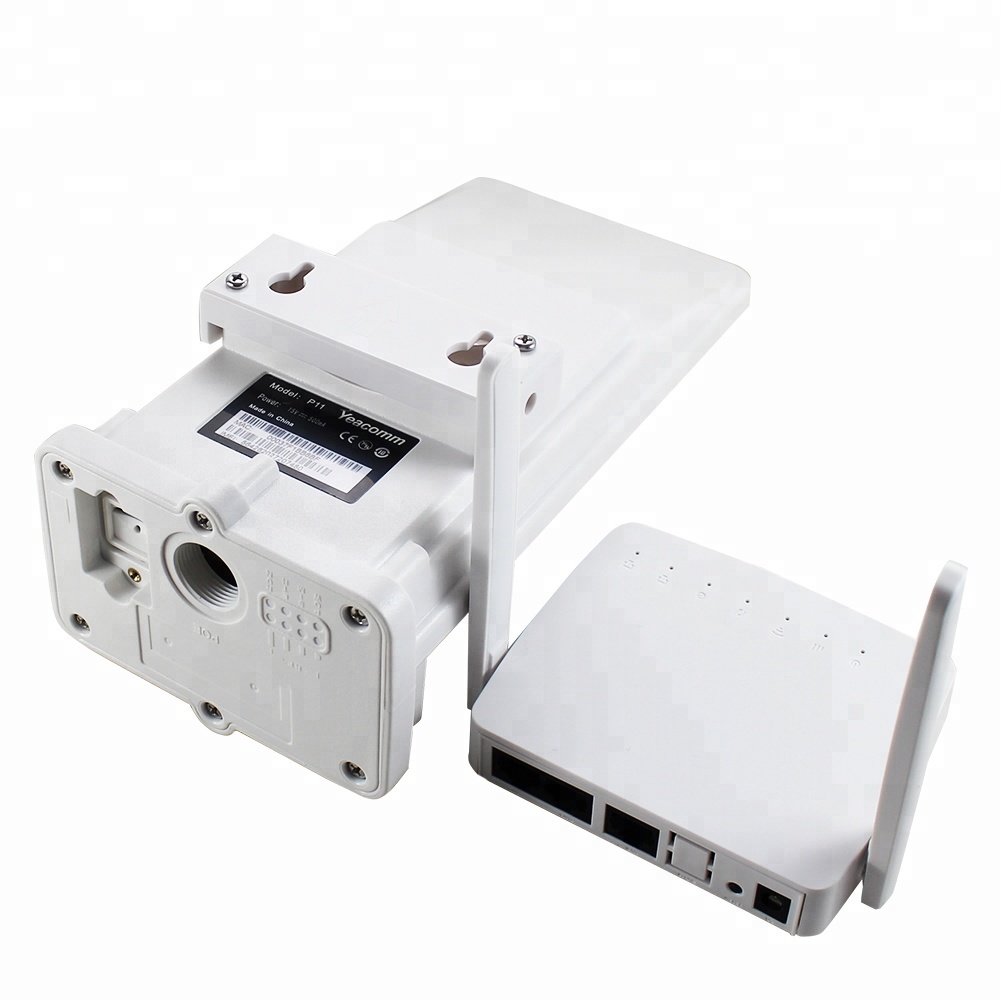

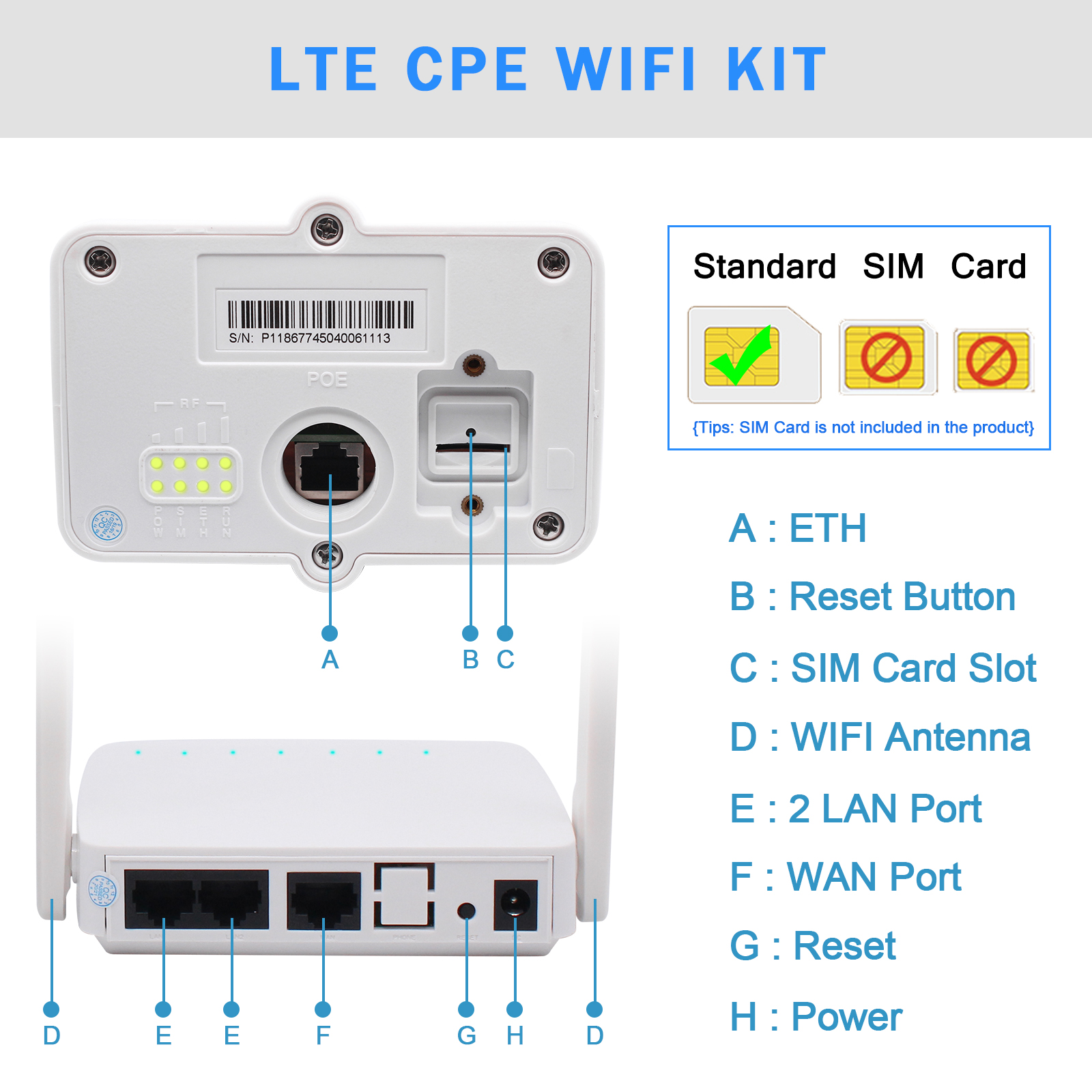

The outdoor unit.
Lan: 1 x 10/100 Mbps Ethernet port(RJ45)
Antenna: Cellular: high gain Internal 8DBi
SIM/UIM: Standard 3V/1.8V user card interface, 15KV ESD protection
Power: Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Dimensions: 252 x 112 x 58mm
Weight: about 560g
The indoor unit.
Wan: 1 x 10/100 Mbps wan port(RJ45)
Lan: 2 x 10/100 Mbps Ethernet port(RJ45)
Antenna: 2 x WIFI antenna
Power: 1 x DC power adapter , DC15V/1A
Dimensions: 105mm x 95mm x 20mm
Weight:125g
TR-069 | CPE WAN Management Protocol |
DDNS | Support |
Upnp | Support |
NAT | Support |
DHCP | Support |
VPN | Support L2TP |
SMS Function | Support |
