- CPU:Industrial 32 bit processor
- Network:5G/4G/3G
- WIFI:WiFi 2.4G/5G
- Antenna:Cellular: 4 x SMA; WIFI 4 x SMA
- Speed:Download:3.4Gbps Upload: 350Mbps
- Dimensions:259x259x45 mm
- Weight:2480g

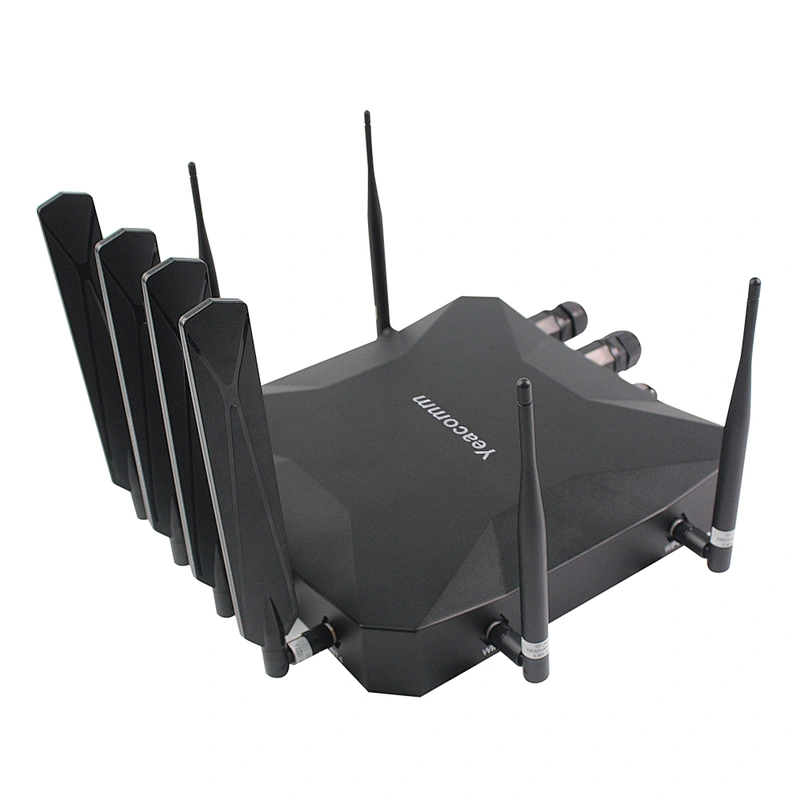

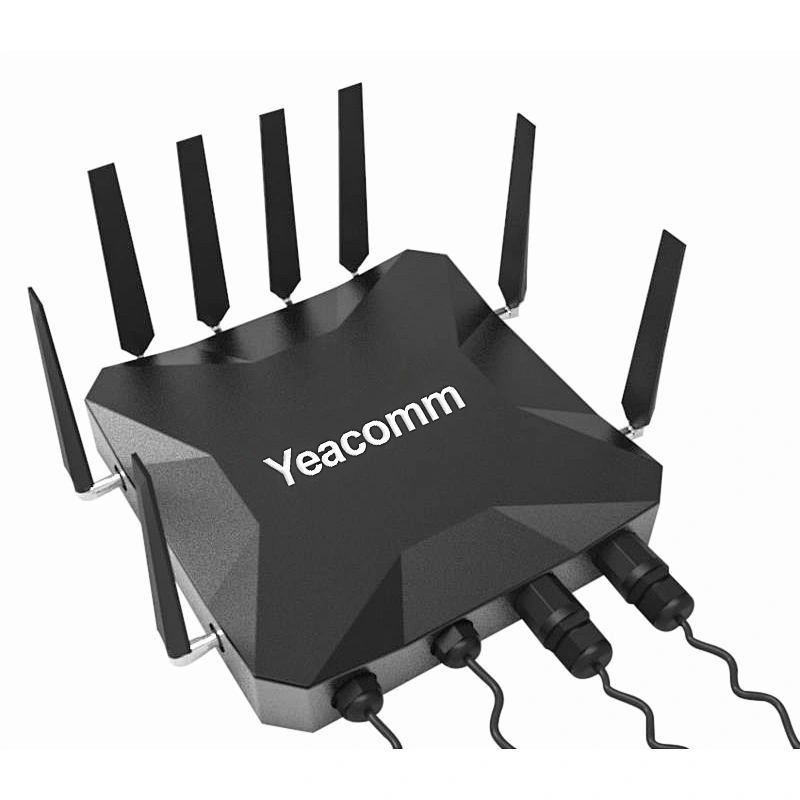

- Item:5G NR router
- Warranty:1 Year
- Max. LAN Data Rate:1000Mbps
- With Modem Function:Yes
- Standards And Protocols:Wi-Fi 802.11g
- Standards And Protocols:Wi-Fi 802.11b
- Standards And Protocols:Wi-Fi 802.11n
- Standards And Protocols:Wi-Fi 802.11ac
- Standards And Protocols:Wi-Fi 802.11a
- Wi-Fi Supported Frequency:2.4G & 5G
- Supports WDS:Yes
- Supports WPS:Yes
- Wi-Fi Transmission Standard:802.11ac
- Wired Transfer Rate:10/100/1000Mbps
- 2.4G Wi-Fi Transmission Rate:300 Mbps
- Encryption Type:WPA2-PSK
- Encryption Type:WPA2-Enterprise
- Encryption Type:WPA
- Encryption Type:WEP
- Products Status:New
- Type:Wireless
- Application:Outdoor
- Function:FireWall
- Function:QoS
- Function:VPN
- LAN Ports:1
- WAN Ports:1 x10/100/1000Mbps
- Certification:FCC
- Certification:ce
- Certification:RoHS
- 5G Wi-Fi Transmission Rate:1000Mbps
- Place of Origin:CN;FUJ
- Brand Name:Yeacomm
Product Description
Industrial Design

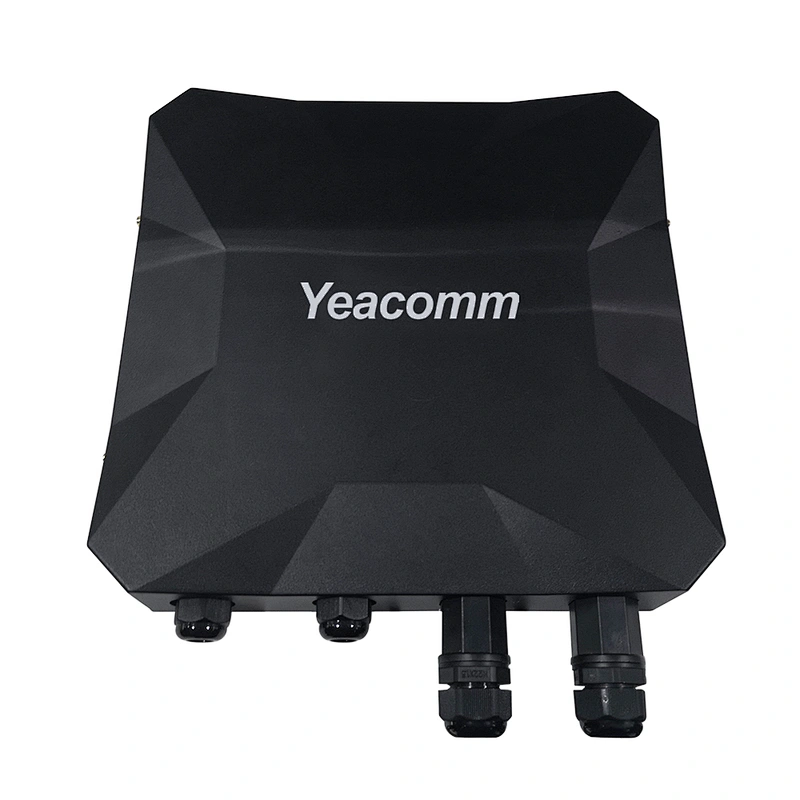

Metal shell, protection grade IP68. Metal housing and system safety isolation
WDT Watchdog design to ensure system stability
Adopt a complete anti-drop mechanism to ensure that the data terminal is always online Built-in 1.5KV electromagnetic isolation protection for Ethernet interface RS232/RS485 interface power and data isolation, in line with CSA, UL and IEC standards SIM/UIM card interface built-in 15KV ESD protection Built-in reverse phase protection and over voltage protection for power interface
WIFI support 802.11b/g/n/ac,support WIFI AP、AP Client，bridge mode etc（optional）
Support VPN client（PPTP，L2TP，IPSEC）
Support VPN server（PPTP，L2TP，IPSEC）
Frequency bands | ||||||||
5G NR | 5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n41/n77/n78/n79 (Standard Version) 5G NR: n2/n5/n7/n12/n25/n41/n66/n71/n78 (Optional Version) | |||||||
LTE | LTE: B1, B2, B3, B5, B7, B8, B20, B28,B34, B38, B39, B40, B41, B42,B43 LTE: B2/4/5/7/12/13/14/17/25/26/29/30/66/71/ B41/42/48 (Optional) | |||||||
HSPA+ | 850/900/1900/2100mhz | |||||||
5G NR router Speed
5G NR：DL 3.4Gbps，UL 350Mbps
LTE Cat20：DL 2.0Gbps，UL 150Mbps
HSPA+：DL 42Mpbs，UL 5.76 Mbps
Hardware | ||||||||
CPU | Industrial 32 bit processor | |||||||
Flash | Nor flah 16MB（64MB optional），nand flash 128MB | |||||||
DDR3 | 521MB | |||||||
TF card | 8GB/32GB，optional | |||||||

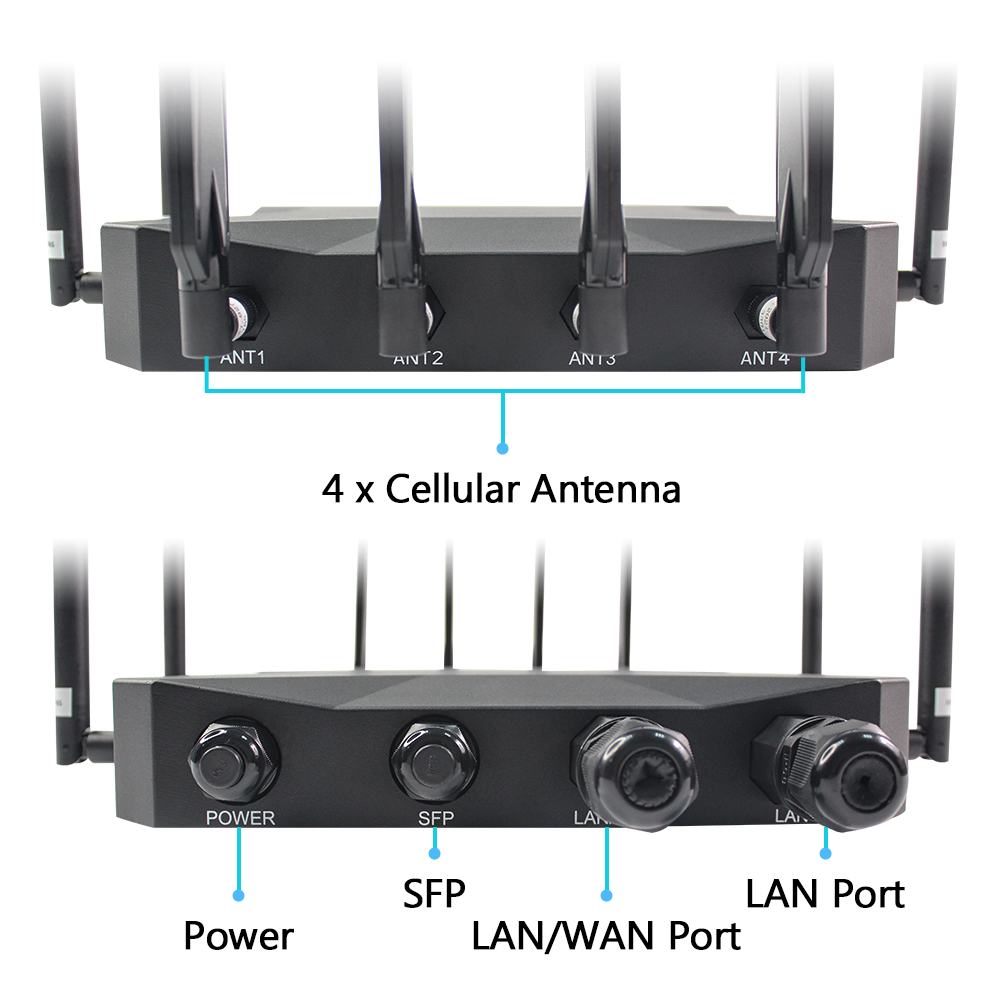

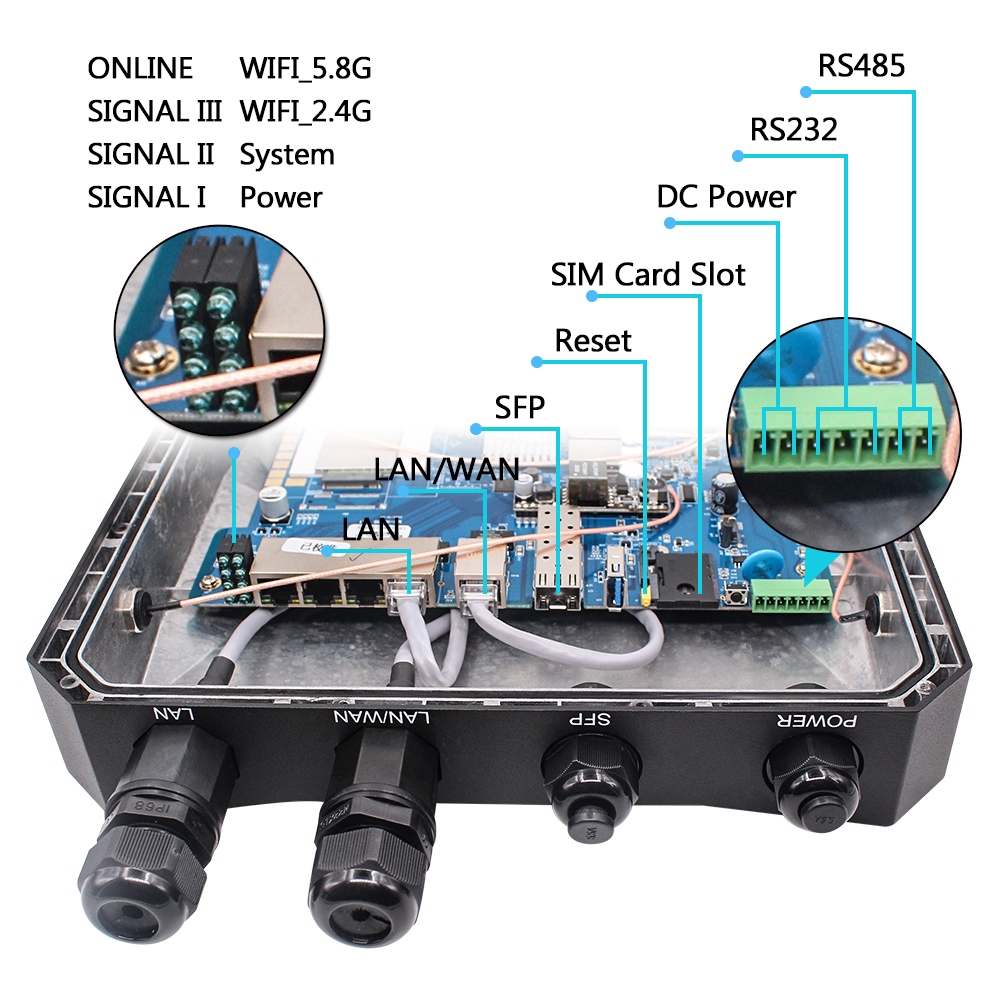

Interface | ||||||||
Wan/Lan | 1 x 1000M ETH port（RJ45water proof），auto adapt MDI/MDIX，built in 1.5KV ESD | |||||||
SFP(Optical fiber) | 1 x 1000M fiber interface（External all-plastic waterproof interface），auto adapt MDI/MDIX， built in 1.5KV ESD | |||||||
Lan | 1 x 1000M ETH port（RJ45water proof），auto adapt MDI/MDIX，built in 1.5KV ESD | |||||||
Serial | 1 x RS232/RS485 serial port（External all-plastic waterproof interface）,built in 1.5KV ESD Data bit ：5、6、7、8 Stop bit：1、1.5(optional)、2 check：NONE 、ODD、EVEN 、SPACE(optional) and MARK(optional) Baud rate ：2400~115200bits/s | |||||||
Indicators | "PWR","SYS","2.4G","5.8G","Online","Signal"Remarks: Built-in indicator light | |||||||

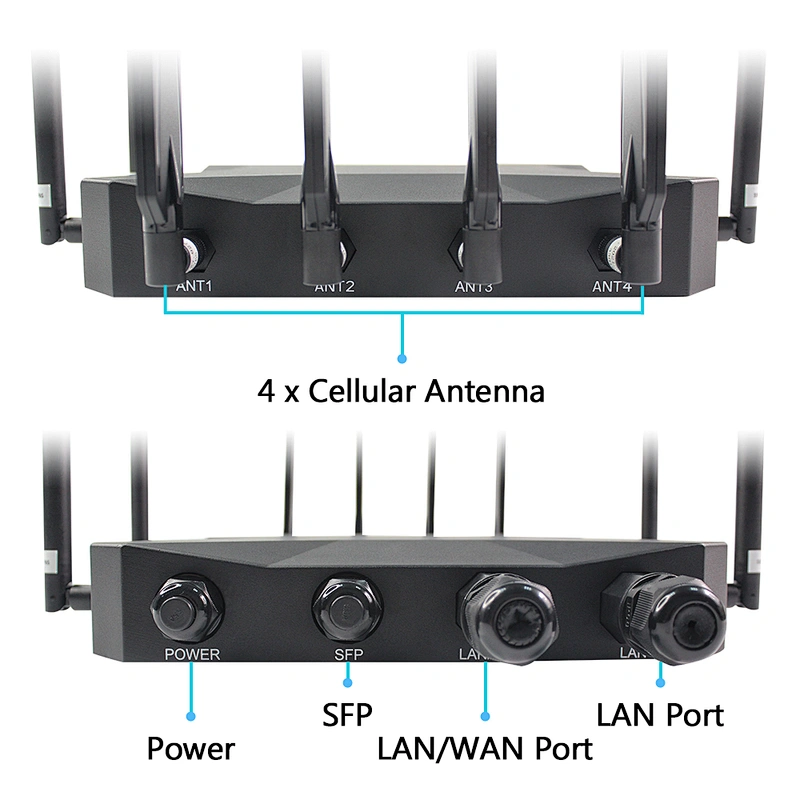

Antenna | Cellular：4 waterproof SMA female antenna, characteristic impedance 50 ohms WIFI：4 waterproof SMA male antenna, characteristic impedance 50 ohms | |||||||
WIFI Specification | ||||||||
Standard | IEEE802.11b/g/n,2.4G,AP mode,Station mode(option) IEEE802.11ac,5.8G,AP mode,Station mode(option) | |||||||
Bandwidth | IEEE802.11b/g：54Mbps IEEE802.11n：300Mbps IEEE802.11ac：866Mbps | |||||||
Security | WEP,WPA,WPA2 encryption,WPS(optional) | |||||||
Power | 26dBm(11b)21dBm,(11ac/MCS7/HT40)20dBm,(11ac/MCS9/HT80) | |||||||
Sensitive | <-72dBm@54Mpbs | |||||||

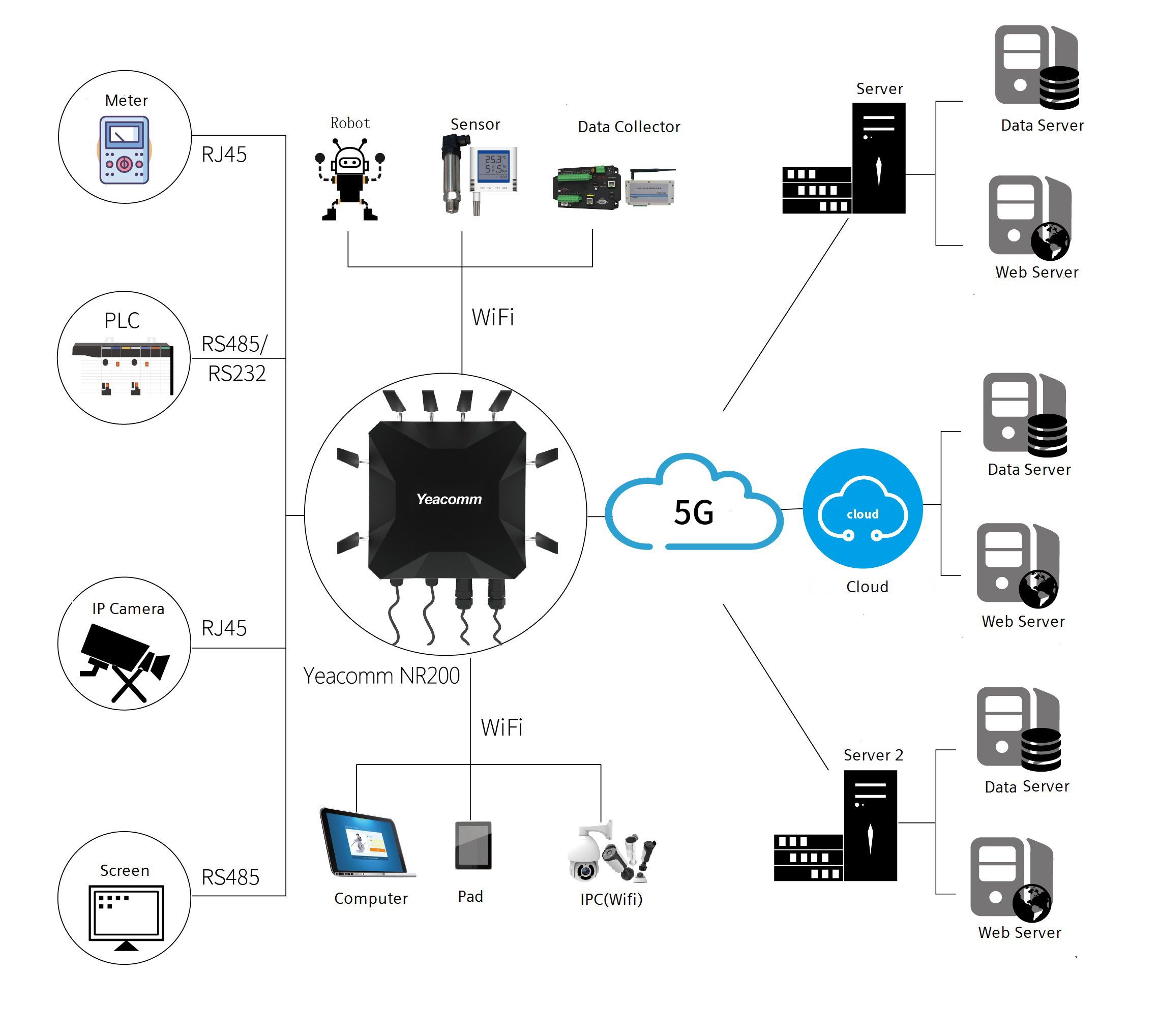

Applications
