- CPU:Industrial 32 bit processor
- Network:5G+4G LTE+3G
- WIFI:WiFi 2.4G/5G

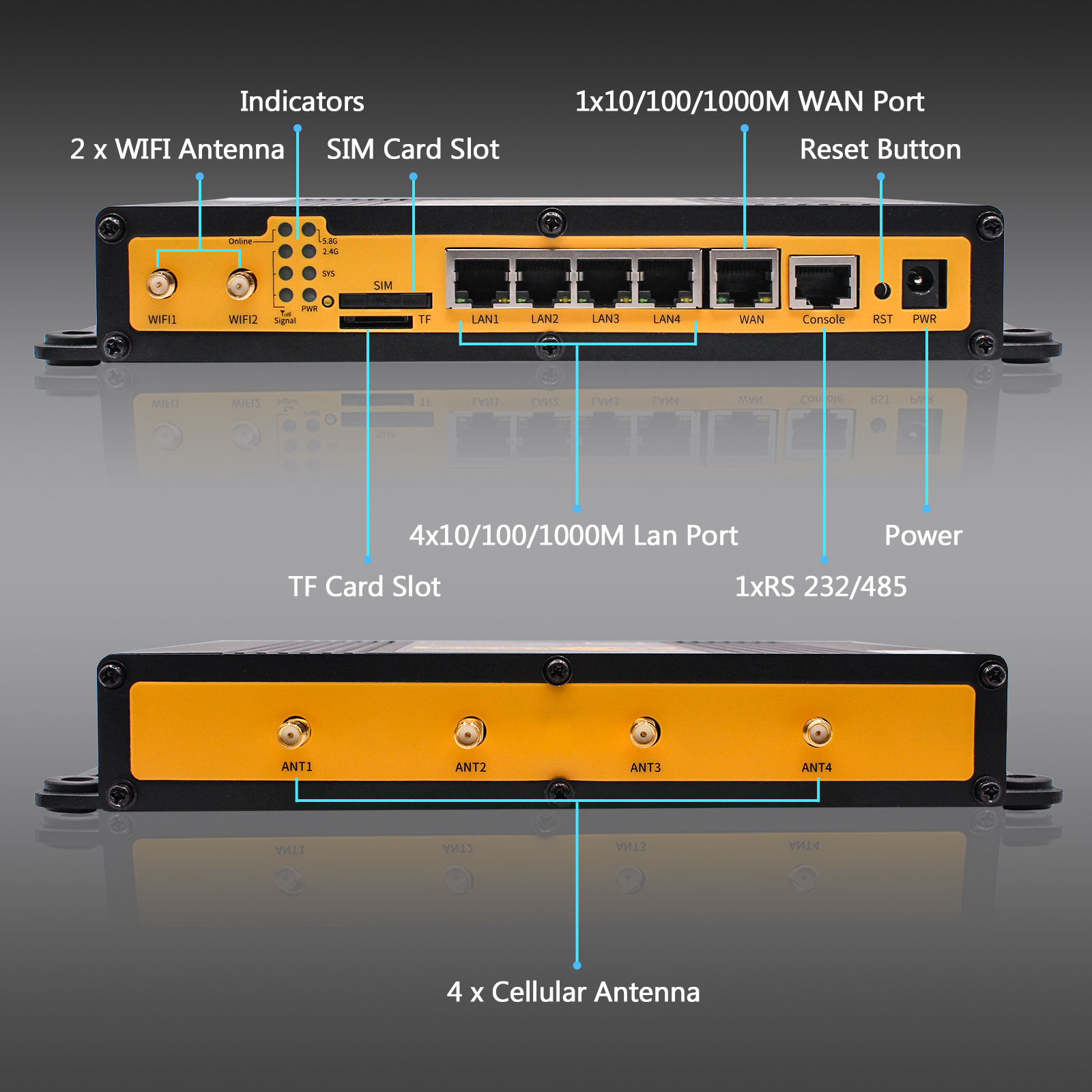

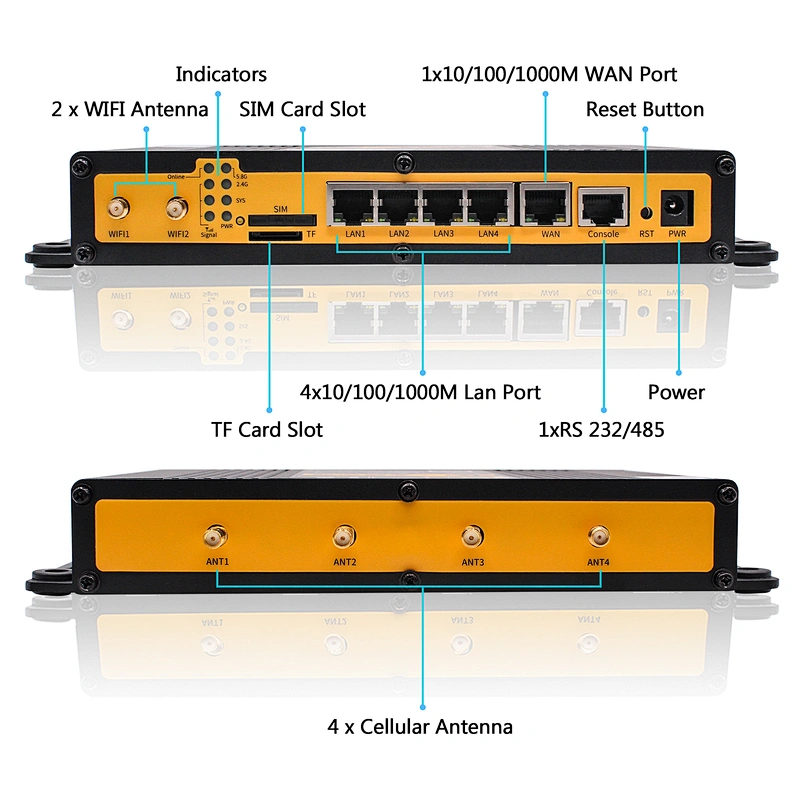

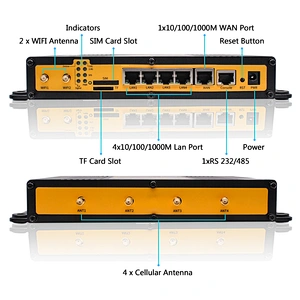

- Interface:1 WAN+4 LAN+1*RS232/RS485

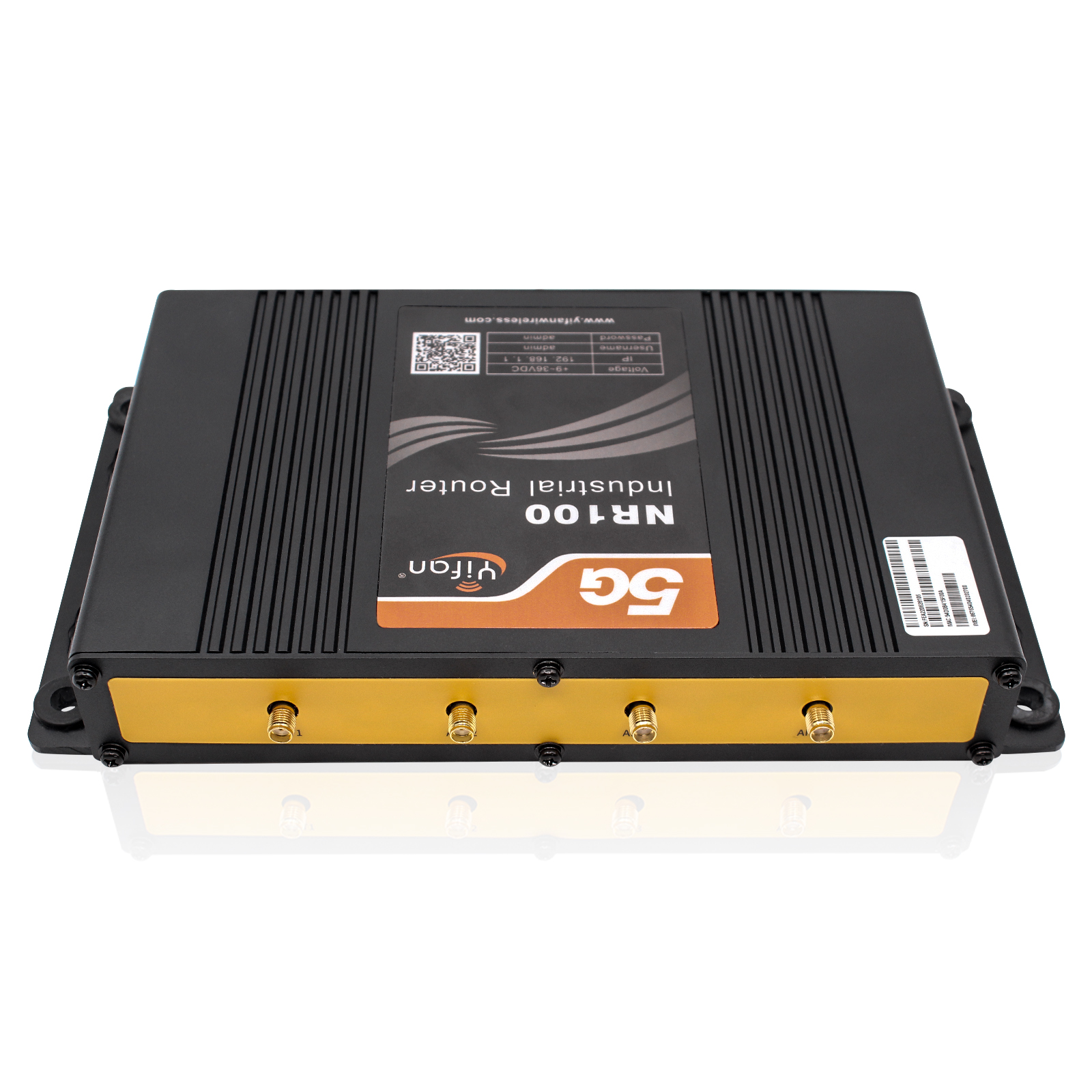

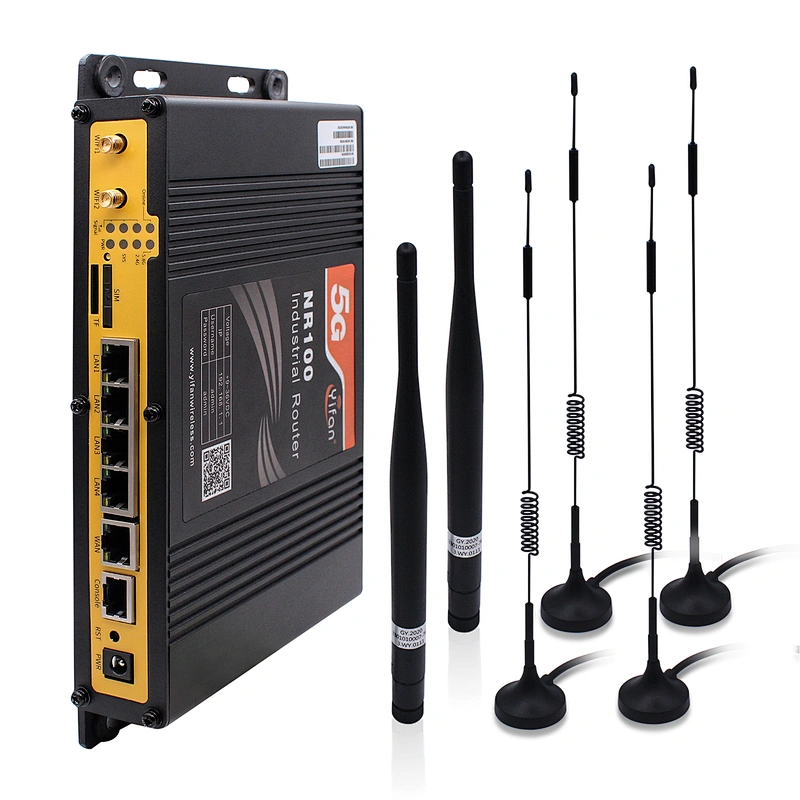

- Antenna:Cellular: 4 x SMA; WIFI 2 x SMA
- Speed:Download:3.4Gbps Upload: 350Mbps
- Dimensions:140x200x40 mm
- Weight:520g

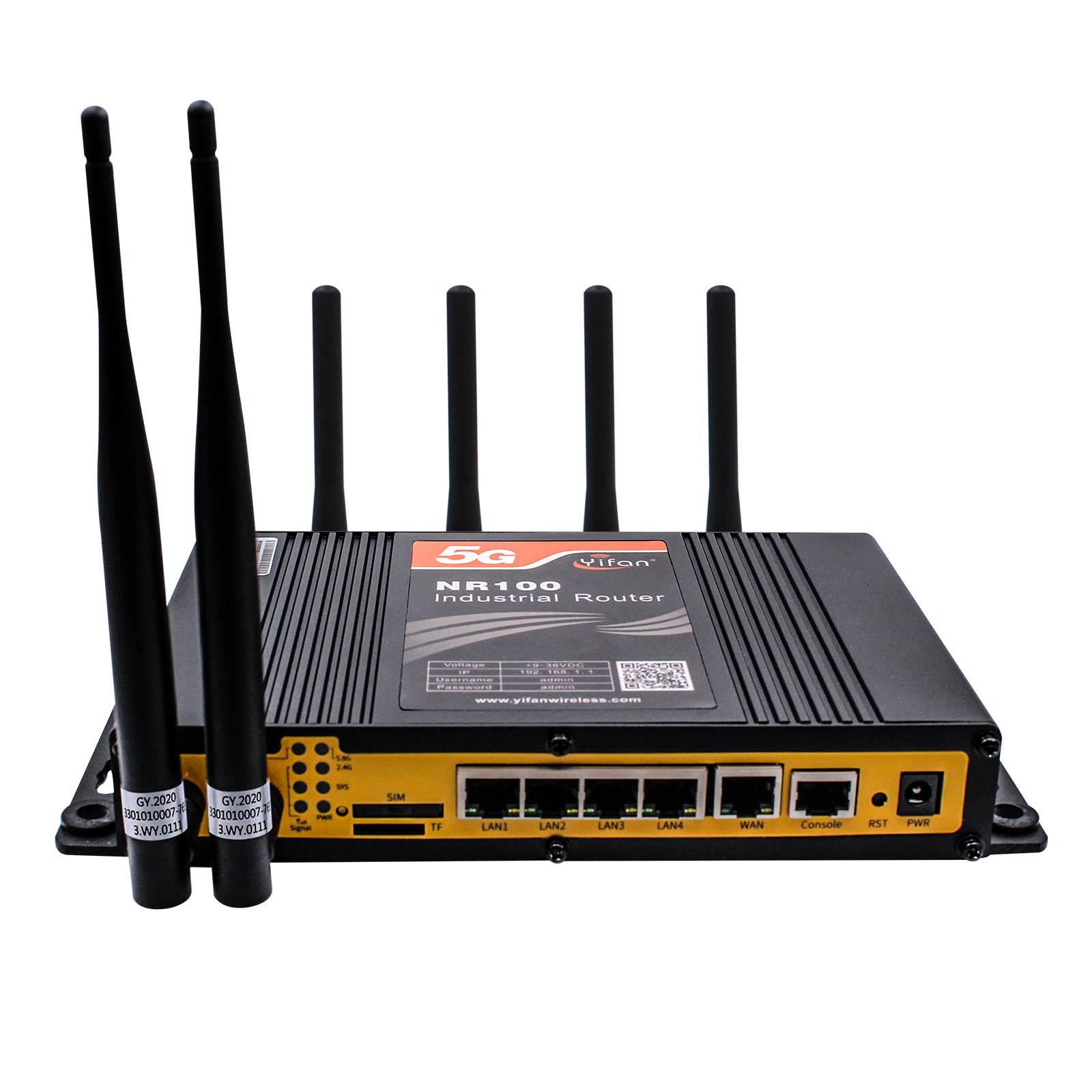

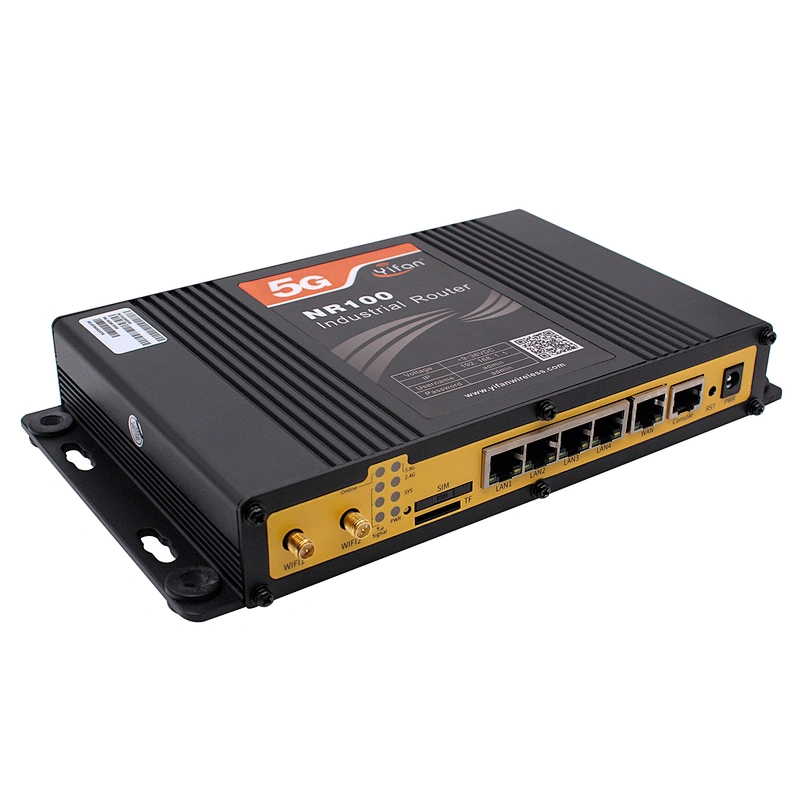

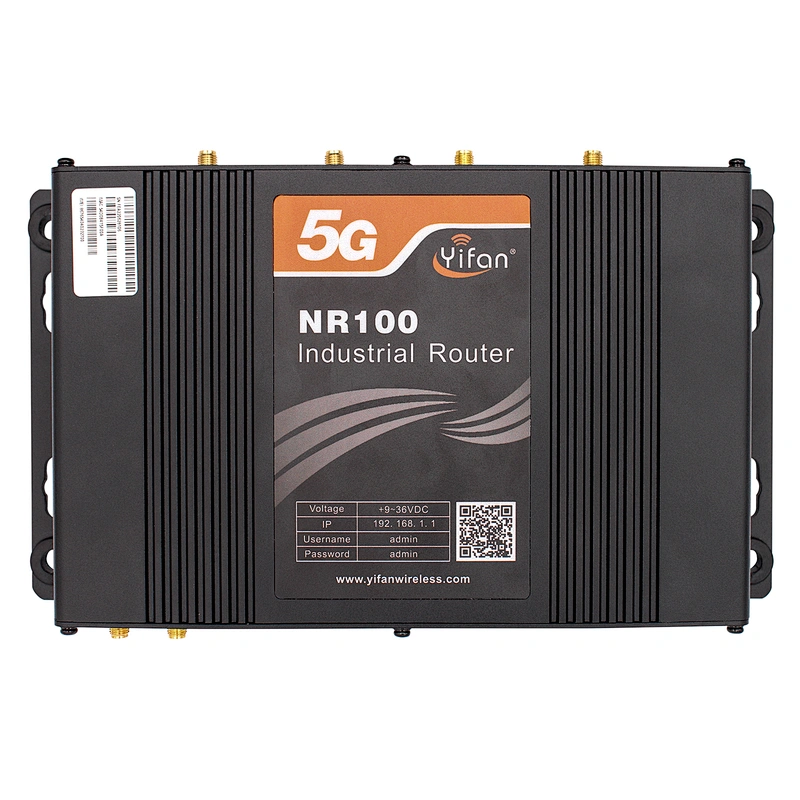

- Item:5G NR router
- Max. LAN Data Rate:1000Mbps
- With Modem Function:Yes
- Standards And Protocols:Wi-Fi 802.11g
- Standards And Protocols:Wi-Fi 802.11b
- Standards And Protocols:Wi-Fi 802.11n
- Standards And Protocols:Wi-Fi 802.11ac
- Standards And Protocols:Wi-Fi 802.11a
- Wi-Fi Supported Frequency:2.4G & 5G
- Supports WDS:Yes
- Supports WPS:Yes
- Wi-Fi Transmission Standard:802.11ac
- Wired Transfer Rate:10/100/1000Mbps
- 2.4G Wi-Fi Transmission Rate:600Mbps
- Encryption Type:WPA2-Enterprise
- Encryption Type:WPA
- Encryption Type:WEP
- Products Status:New
- Type:Wireless
- Function:FireWall
- Function:QoS
- Function:VPN
- LAN Ports:4
- WAN Ports:1 x10/100/1000Mbps
- Certification:FCC
- Certification:ce
- Certification:RoHS
- 5G Wi-Fi Transmission Rate:1000Mbps
- Place of Origin:CN;FUJ
- Brand Name:Yifan
Product Description
Frequency bands | ||||||||
5G NR | 5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n41, n77,n78, n79 5G NR: n2/n5/n7/n12/n25/n41/n66/n71/n78 (Optional) | |||||||
LTE | LTE: B1, B2, B3, B5, B7, B8, B20, B28,B34, B38, B39, B40, B41, B42,B43 LTE: B2/4/5/7/12/13/14/17/25/26/29/30/66/71/ B41/42/48 (Optional) | |||||||
HSPA+ | 850/900/1900/2100mhz | |||||||
5G NR router Speed
5G NR：DL 3.4Gbps，UL 350Mbps
LTE Cat20：DL 2.0Gbps，UL 150Mbps
HSPA+：DL 42Mpbs，UL 5.76 Mbps
Hardware | ||||||||
CPU | Industrial 32 bit processor | |||||||
Flash | Nor flah 16MB（64MB optional），nand flash 128MB | |||||||
DDR3 | 521MB | |||||||
TF card | 8GB/32GB，optional | |||||||
GPS（Optional） | ||||||||
Type | GPS/GLONASS/BeiDou/Galileo | |||||||
Update interval | 5GHz | |||||||
Location | 2.5m CPE SBAS：2.0m CPE | |||||||
Sensitive | Follow：-160dBm Re-capture：-160dBm Cold start：-146dBm | |||||||

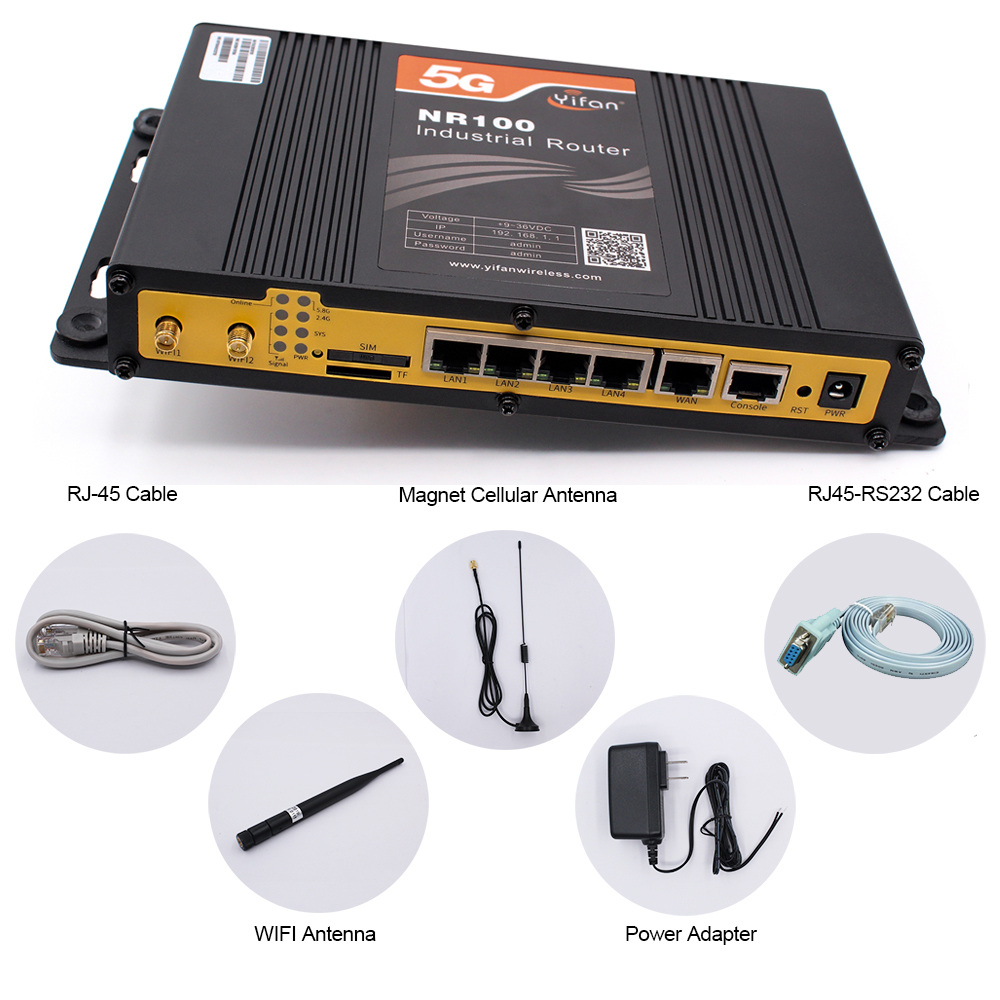

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Applications
Company Profie
